CONTROL 52-WH | SATELLITE SPEAKER, 60 MM (2.5 IN) LOW-DISTORTION DRIVER, FOR USE WITH C50S/T OR C50CS/T SUBWOOFER
CONTROL 52-WH
SATELLITE SPEAKER, 60 MM (2.5 IN) LOW-DISTORTION DRIVER, FOR USE WITH C50S/T OR C50CS/T SUBWOOFER
CONTROL 52-WH
SATELLITE SPEAKER, 60 MM (2.5 IN) LOW-DISTORTION DRIVER, FOR USE WITH C50S/T OR C50CS/T SUBWOOFER
- UM : EA

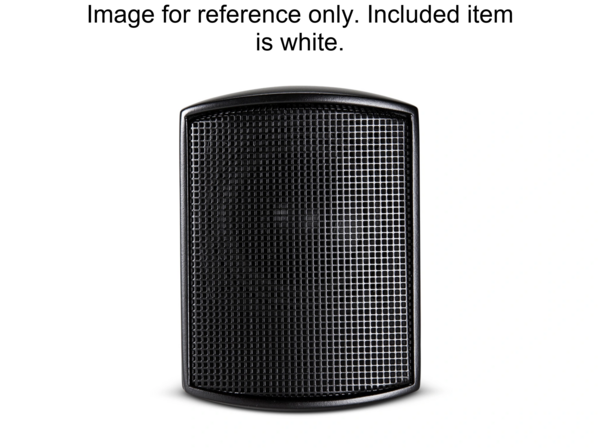

CONTROL 52-WH is a surface-mount satellite speaker designed for use in subwoofer-satellite loudspeaker systems. It features a 60 mm (2.5 in) low distortion driver with a secondary bucking magnet for high efficiency. The driver includes a rubber half-roll surround to enhance bass response, a 19 mm (0.75 in) copper-clad aluminum wire voice coil on a vented Nomex® former, and a copper-capped pole piece to maintain consistent impedance and extend high-frequency response. The included wall bracket permits adjustment of the speaker angle up to 45° off-axis.
The CONTROL 52-WH can be used in configurations of two or four mid-high speakers paired with a Control 50S/T pendant subwoofer, Control 60PS/T pendant subwoofer, or Control 40CS/T in-ceiling subwoofer. The subwoofer incorporates the system crossover and supports both low-impedance and 70V/100V distributed speaker line operation.
Features:
- Stylish design
- Fits various decors
- Compatible with Control 42C and Control 62P speakers
- 16 ohms impedance
- Wall-mount brackets included
- Available in black or white
| Frequency Range (-10dB) | 140 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 180 Hz – 17 kHz |
| Power Rating | 50 Watts Continuous Program Power (2 hrs) |
| Sensitivity | 85 dB (4.0V/1m = 1W), 82 dB (2.83V, 1m) |
| Coverage Angle | Omnidirectional |
| Maximum SPL (1m) | 94 dB average, 100 dB peak |
| Impedance | 16 ohms |
| Drivers | 60 mm polypropylene cone, butyl rubber surround, 19 mm copper-clad coil, vented Nomex former, secondary bucking magnet, copper sleeved pole piece |
| Input Connectors | Removable locking 2-pin connector with screw-down terminals, Max wire 12 AWG |
| Enclosure | High impact polystyrene, painted zinc-plated metal grille |
