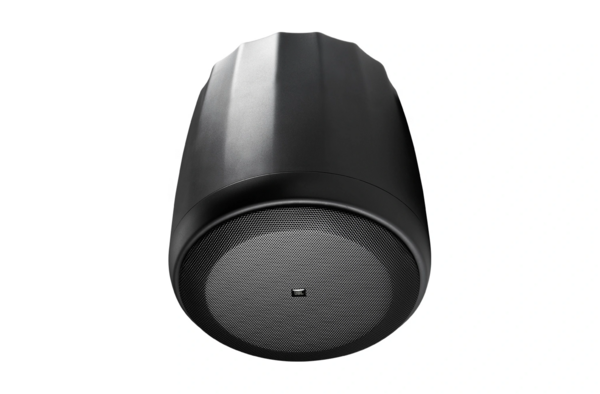

CONTROL 60PS/T | 150W PENDANT SUBWOOFER WITH BUILT-IN PASSIVE CROSSOVER, 8OHM & 70V / BLACK (PRICE EA, BUY PR)

The Control 60PS/T pendant subwoofer loudspeaker includes a 200 mm (8 in) long-excursion low-frequency driver with a butyl rubber surround and a polypropylene-coated cone for humidity resistance. It is equipped with a 50 mm (2 in) high-temperature voice coil mounted on a low-mass fiberglass coil former. The unit has a power handling capacity of 150 W and is designed for use in full-range audio systems requiring bass extension. The design aims to provide low distortion and stable performance under high power and high duty cycle conditions.

• 150W direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers
• 200 mm (8 in) long-excursion driver
• 8 ohm (150W) and 70V/100V (100W) operation
• Hanging hardware with 4.5 m (15 ft) galvanized steel cable and adjustable clamp
• UL listed (speaker and hanging cable system)

Frequency Range	42 Hz – 350 Hz
Frequency Response	55 Hz – 125 Hz
Power Rating	300 W Continuous Program Power, 150 W Continuous Pink Noise
Nominal Sensitivity	88 dB (2.83V/1m)
Maximum SPL	107 dB average, 113 dB peak @ 1 m
Impedance	8 ohms
Transformer Taps	110W, 55W, 30W, 15W @ 70V; set via rotary tap-selector switch
Transformer Insertion Loss	approx. 0.94 to 1.10 dB depending on tap
Standalone Hookup	Connect to input; built-in low-pass filter active; Loop Out in parallel for additional speakers
Subwoofer-Satellite Hookup	Supports 2 or 4 satellite speakers; satellite outputs high-passed; recommended satellite models specified
Drivers	200mm polypropylene-coated paper cone, 50mm high-temp copper voice coil, vented fiberglass resin former
Enclosure Material	High impact polystyrene
Baffle	Zinc-plated steel with powder-coat finish and foam backing, removable for painting
Environmental	Exceeds Mil Spec 810 (humidity, salt spray, temperature, UV); IP44 splash-proof rating
Input Connectors	Six removable locking 2-pin connectors with screw terminals; max wire 12 AWG; rubber terminal covers included
Safety Agency	Complies with UL1480, UL1876, IEC60849/EN60849; suspension system certified per UL1598, UL2239, TUV, CSA
Included Accessories	Two suspension cable systems, six removable locking 2-pin euro-block connectors, six rubber cover boots
Colors	Black; paintable
Coverage Angle	140° conical
