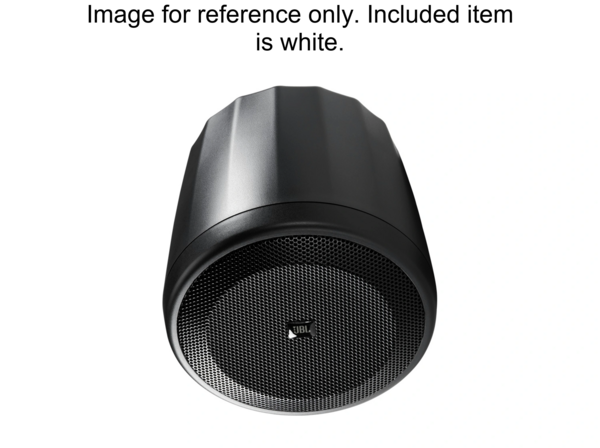

CONTROL 62P-WH | C62P-WH 2.5" ULTRA-COMPACT SATELLITE PENDANT SPEAKER

Control 62 P is an ultra-compact mid-high satellite pendant speaker featuring a 2-inch driver. It requires an external high-pass filter for speech and mid-high frequency applications. For full-range, wide bandwidth operation, up to four Control 62 P units can be powered by a Control 50 S/T or 40 CS/T subwoofer.

• 2.5 inch driver
• 20 W power
• 16 ohms impedance
• Compatible with Control 52 and Control 42C speakers
• White

Frequency Range (-10dB)	150 Hz – 20 kHz
Frequency Range (±3 dB)	200 Hz – 17 kHz
Power Rating	50 W Continuous Program Power (2 hrs), 25 W Continuous Pink Noise (2 hrs), 30 W Continuous Program Power (100 hrs), 15 W Continuous Pink Noise (100 hrs)
Nominal Sensitivity	87 dB (4.0 V, 1 W), 84 dB (2.83 V)
Coverage Angle	140° conical
Directivity Factor (Q)	4.7
Directivity Index (DI)	6.2 dB
Maximum SPL (1m)	97 dB continuous pink noise, 103 dB peak
Impedance	16 ohms (no transformer taps)
Recommended High-Pass Frequency	150 Hz
Drivers	60 mm polypropylene-coated paper with butyl rubber surround, 20 mm copper clad aluminum voice coil with vented Nomex coil-former
Enclosure	High impact polystyrene
Baffle	Zinc-plated steel with powder-coat finish, foam backing (removable for painting)
Outdoor Capability	Exceeds Mil Spec 810 for humidity, salt spray, temperature, and UV; IP44 splashproof rating
Input Connectors	Two removable locking euro-block 2-pin connectors with screwdown terminals, paralleled for input and loop-through, max wire 12 AWG; rubber terminal covers included
Suspension	Two identical systems each with 4.5 m 2 mm high-tensile galvanized-steel wire rope cables, spring-clips, and Gripple adjustable-height cable fasteners; SWL rating 45 kg
Safety Agency	Speaker listed per UL1480, transformer per UL1876; complies with IEC60849/EN60849; suspension system and cable fastener listed per UL1598, UL2239, TUV, CSA Class 3426-01 & 3426-81
Included Accessories	Two suspension cable systems, two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors
Colors	White
