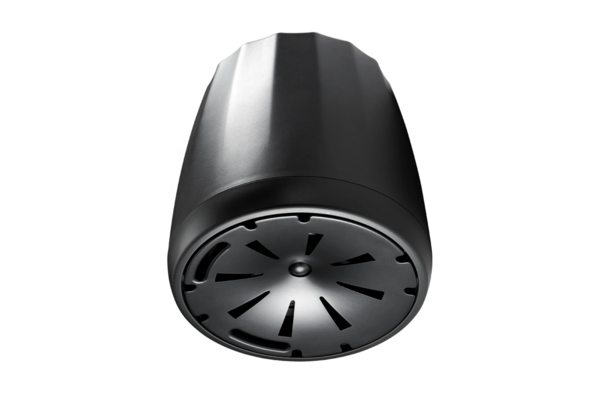

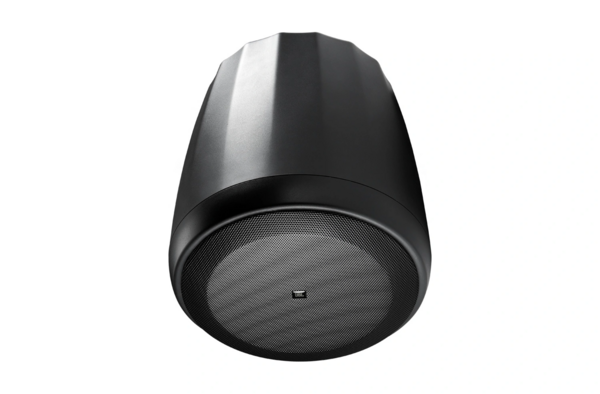

CONTROL 67P/T-WH | EXTENDED-BASS FULL-RANGE PENDANT SPEAKER WITH RBI. 6-1/2" (165 MM) LF & SILK DOME HF, RBI RADIATION

Extended Range Full-Range Pendant Speaker, Model Control 67P/T-WH, features a large enclosure housing a 6.5-inch (165 mm) high-power transducer. It includes an extra-large Radiation Boundary Integrator (RBI) designed to provide controlled sound dispersion patterns for improved coverage.

• RBI Radiation Boundary Integrator Technology
• 120° conical coverage
• 6.5 inch low-frequency driver with silk-dome tweeter
• 75 W at 8 ohms
• 60 W multi-tap transformer

Frequency Range (-10dB)	58 Hz – 18 kHz
Frequency Range (±3 dB)	78 Hz – 16 kHz
Power Rating	75 W continuous pink noise, 150 W continuous program power
Nominal Sensitivity	90 dB
Coverage Angle	120° conical
Directivity Factor (Q)	5.7
Directivity Index (DI)	7.5 dB
Maximum SPL (1m)	109 dB continuous pink noise, 115 dB peak
Impedance	8 ohms
Transformer Taps	70V: 60W, 30W, 15W, 7.5W; 100V: 60W, 30W, 15W
Transformer Insertion Loss	0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
Drivers	LF - 165 mm polypropylene-coated paper with butyl rubber surround and 25 mm copper voice coil; HF - 25 mm textile soft dome, neodymium magnet, ferro-fluid cooling, aluminum voice coil former
Enclosure	High impact polystyrene
Baffle	Zinc-plated steel with powder-coat finish, foam backing (removable for painting)
Outdoor Capability	Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV; IP44 splashproof rating

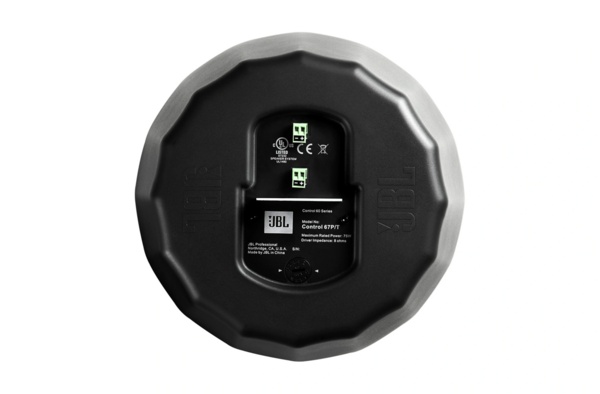

Input Connectors	Two removable locking euro-block 2-pin connectors with screwdown terminals; max wire 12 AWG (2.5 mm²); rubber terminal covers included
Suspension	Two identical suspension systems with 4.5 m 2 mm galvanized-steel wire rope cables with spring clips and adjustable-height fasteners; SWL rating 45 kg
Safety Agency	Speaker UL1480 listed; transformer UL1876 registered; complies with IEC60849/EN60849; suspension and fasteners UL1598, UL2239, TUV, CSA Class 3426-01 & 3426-81
Included Accessories	Two suspension cable systems, two 2-pin removable locking euro-block connectors, two rubber covers
Colors	White, paintable
