CONTROL 68HP | 2WAY 8" WOOFER COAXIAL
CONTROL 68HP
2WAY 8" WOOFER COAXIAL
CONTROL 68HP
2WAY 8" WOOFER COAXIAL
- UM : EA

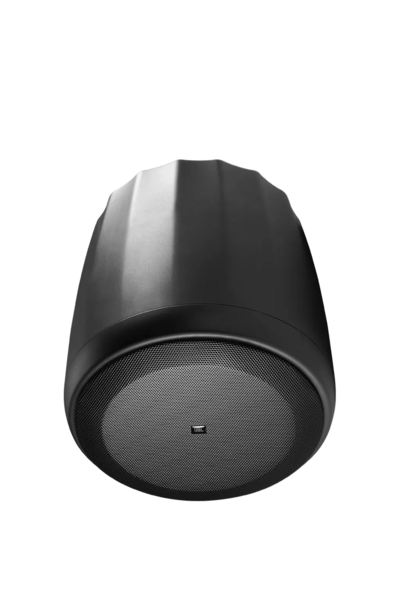

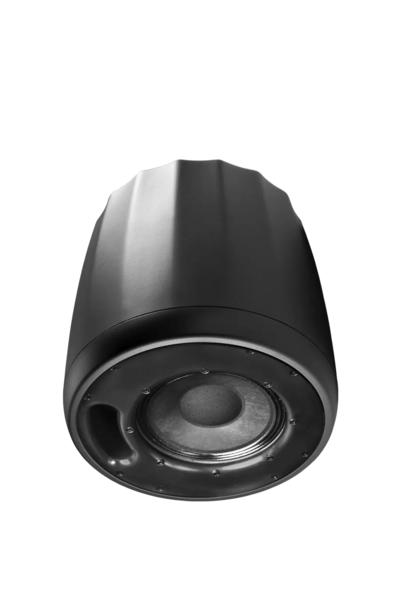

The CONTROL 68HP is a full-range two-way pendant loudspeaker designed for pendant mounting in open-architecture ceilings and similar environments. It features a 209 mm (8-inch) low-frequency driver with a Kevlar-reinforced cone and a 50 mm (2-inch) voice coil utilizing a fiberglass former. The high-frequency component is a coaxially-mounted 25 mm (1-inch) compression driver with a titanium dome and a Kapton voice coil former. The loudspeaker delivers a 110° constant-directivity dispersion pattern.
The unit includes a 68-watt multi-tap transformer compatible with 70V/100V distributed lines, switchable for 8-ohm direct operation. Two hanging cable systems are provided for mounting, including main and safety suspension cables, with height adjustment via a 4.5-meter galvanized steel wire rope equipped with spring clips and UL-listed cable fasteners.
Features:
- 209 mm Kevlar reinforced woofer
- 50 mm voice coil
- 25 mm titanium dome compression driver
- 250W power capability
- 114 dB SPL
- 120 dB peak SPL
- Hanging hardware with 4.5 m galvanized steel cable
- Adjustable clamp
- Available in black or white
- UL listed speaker and hanging cable system
- 8ohm and 70V/100V operation
- 110° constant-directivity coverage
| Frequency Range | 52 Hz - 17 kHz |
|---|---|
| Frequency Response | 72 Hz - 16 kHz |
| Power Rating | 150W Continuous Pink Noise, 600W peak (100 hrs); 250W Continuous Pink Noise, 1000W peak (2 hrs); 500W Continuous Program Power (2 hr) |
| Sensitivity | 90 dB |
| Maximum SPL | 114 dB continuous pink noise, 120 dB peak |
| Coverage Angle | 110° conical |
| Directivity Factor (Q) | 7.8 |
| Directivity Index (DI) | 8.9 dB |
| Nominal Impedance | 8 Ω |
| Transformer Taps | 70V: 68W, 34W, 17W, 8.5W; 100V: 68W, 34W, 17W |
