CONTROL 68HP-WH | 8" HIGH-POWER PENDANT LOUDSPEAKER, WHITE
CONTROL 68HP-WH
8" HIGH-POWER PENDANT LOUDSPEAKER, WHITE
CONTROL 68HP-WH
8" HIGH-POWER PENDANT LOUDSPEAKER, WHITE
- UM : EA

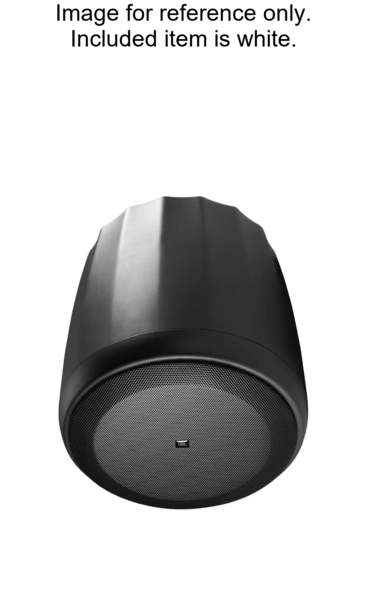

The CONTROL 68HP-WH is a full-range two-way pendant loudspeaker designed for pendant mounting in open-architecture ceilings and similar environments. It features a 209 mm (8-inch) low-frequency driver with a Kevlar-reinforced cone and a 50 mm (2-inch) voice coil utilizing a fiberglass former. The high-frequency component is a coaxially-mounted 25 mm (1-inch) compression driver with a titanium dome and a Kapton voice coil former. The loudspeaker delivers a 110° constant-directivity dispersion pattern.
The unit includes a 68-watt multi-tap transformer compatible with 70V/100V distributed lines, switchable for 8-ohm direct operation. Two hanging cable systems are provided for mounting, including main and safety suspension cables, with height adjustment via a 4.5-meter galvanized steel wire rope equipped with spring clips and UL-listed cable fasteners.
Features:
- Coaxial design
- 209 mm (8 in) Kevlar reinforced woofer
- 50 mm (2 in) voice coil
- 25 mm (1 in) titanium dome compression driver
- 250W power handling (1000W peak)
- 114 dB SPL (120 dB peak)
- Hanging hardware with 4.5 m galvanized steel cable and adjustable clamp
- UL listed speaker and hanging cable system
- 8ohm and 70V/100V operation
- 110° constant directivity conical coverage
| Frequency Range | 52 Hz - 17 kHz |
|---|---|
| Frequency Response | 72 Hz - 16 kHz |
| Power Rating | 150W Continuous Pink Noise (600W peak, 100 hrs), 250W Continuous Pink Noise (1000W peak, 2 hrs), 500W Continuous Program Power (2 hr) |
| Sensitivity | 90 dB |
| Maximum SPL | 114 dB continuous pink noise, 120 dB peak |
| Coverage Angle | 110° conical |
| Directivity Factor (Q) | 7.8 |
| Directivity Index (DI) | 8.9 dB |
| Nominal Impedance | 8Ω |
| Enclosure Material | High impact polystyrene |
