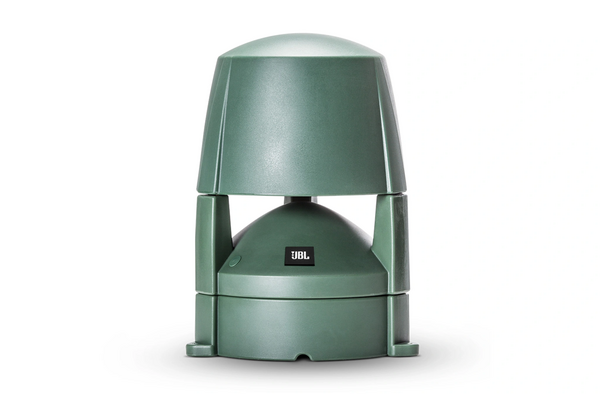

CONTROL 85M | COMPACT 5¼" MUSHROOM-STYLE LANDSCAPE SPEAKER. 5-1/4" (130 MM) POLYPROPYLENE CONE WOOFER
CONTROL 85M
COMPACT 5¼" MUSHROOM-STYLE LANDSCAPE SPEAKER. 5-1/4" (130 MM) POLYPROPYLENE CONE WOOFER
CONTROL 85M
COMPACT 5¼" MUSHROOM-STYLE LANDSCAPE SPEAKER. 5-1/4" (130 MM) POLYPROPYLENE CONE WOOFER
- UM : EA
- Estimated Weight: 16.0
Designed for outdoor applications, the highly weather resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360 degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality and leisure venues, entrance ways, and anywhere a high quality music and/or paging speaker landscape speaker is required. Compact in design, the speaker is unobtrusive and easily blends in with its surroundings. A tough polyethylene enclosure resists abuse from lawn care equipment and the elements, and the enclosure color extends throughout the material so the speaker will maintain color even when scraped or scratched.
Features:
- Components: 5 and 1/4” highly weather-resistant driver, 3/4" soft-dome highly weather-resistant tweeter
- 80W Pink Noise Power Handling (160W program) in direct 8Ώ setting, plus built-in 30W 70V/100V multi-tap transformer
- Tough polyethylene highly weather resistant enclosure

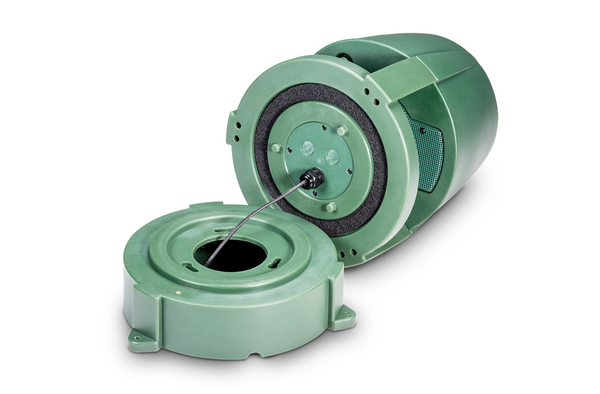

- Fully isolated center chamber for wiring protection
- High fidelity sound character with broad frequency range of 55Hz - 18kHz
| Frequency Range (-10dB) | 55 Hz – 18 kHz |
|---|---|
| Power Rating | 160 W Continuous Program (2 hrs) 80 W (320W peak), Continuous Pink Noise (2 hrs) 45 W (180W peak) Continuous Pink Noise (100 hrs) |
| Transformer Taps | 70V: 30W, 15W, 7.5W & 3.8W 100V: 30W, 15W, 7.5W |
| Frequency Response (±3 dB) | 65Hz - 16 kHz |
| Maximum Input Voltage | 23.3 V |
| Sensitivity | 86 dB, 1W @ 1m (ave. 80Hz - 16kHz) |
| Coverage Pattern | 360° H, 160° V (primary listening 10° to 50° up from ground) |
| Directivity Factor (Q) | 2.2 |
| Directivity Index (DI) | 3.4 dB |
| Maximum SPL (1m) | 105 dB |
| Impedance | 8Ω (at 8Ω setting) |
| Insertion Loss | <1.0 dB at any tap setting |
| Thru Setting | 8Ω nominal |
| Crossover Type | 2nd Order LPF on LF and 2nd Order HPF on HF |
| Recommended Protective High-Pass | 65 Hz for 8Ω operation, 24 dB/oct 60 Hz for 30W tap, 24 dB/oct 50 Hz for 15W, 7,5W, and 3.7W taps, 24 dB/oct |
| LF Driver | LF: 135 mm (5.25 in) diameter LF driver, Kapton former, 35.5mm (1.4 in) voice coil, polypropylene cone and polyurethane surround.HF: 19mm (0.75 in) diameter HF driver Polyetherimide (PEI) dome. |
| Enclosure | LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated. |
| Grille | Powder coated stainless steel. |
| Outdoor Capability | IP-56 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated. |
| Safety Agency | UL1480, Transformer UL Recognized per UL1876, ROHS compliant. |
| Colors | Hunter Green, RAL6018 |
| Dimensions (H x W x D) | 432 x 291 x 291mm (17 x 11.5 x 11.5 in.) |
| Net Weight (each) | 5.5 kg (12 lb) |
| Included Accessories | (2) wire nuts, (2) gland nuts, (1) right-angle screwdriver |
