CONTROL HST

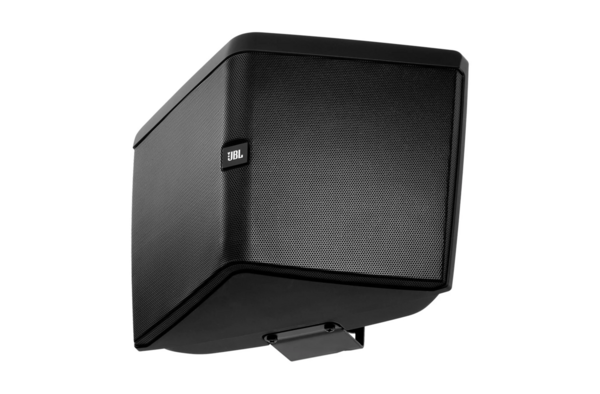

CONTROL HST - WIDE-COVERAGE ON-WALL SPEAKER WITH SPLAYED TWEETERS & WALL-FACING WOOFER / BLACK

• UM : EA
• Estimated Weight: 12.0

Speaker featuring a 5.25-inch low-frequency driver, dual tweeters, and HST technology designed for wide sound coverage.

Frequency Range (-10dB)	50 Hz – 20 kHz
Frequency Response (±3 dB)	68 Hz – 18 kHz
Coverage Angle	180°H x 160°V
Directivity Factor (Q)	5.4 (1 k – 16 kHz)
Directivity Index (DI)	7.2 dB (1 k – 16 kHz)
System Power Rating (IEC)	100 W (400 W peak), 2 hrs; 75 W (300 W peak), 100 hrs
Sensitivity	88 dB (Ave. 80 Hz – 20 kHz)
Maximum SPL (1m)	Direct 8 ohm: 108 dB (peaks 114 dB); 60 W Tap: 97 dB @ 60W
Crossover Network	1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF
Impedance	8 ohms

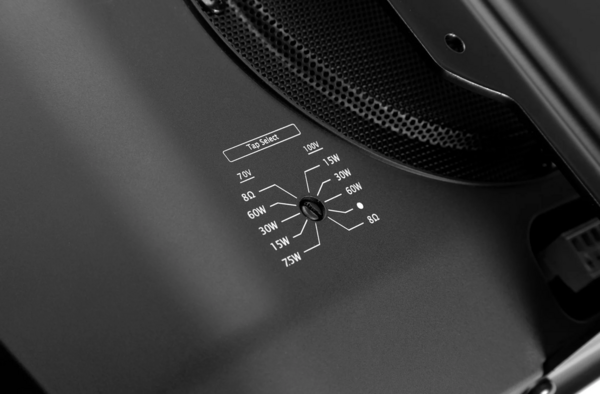

Transformer Taps	70V: 60W, 30W, 15W, 7.5W; 100V: 60W, 30W, 15W

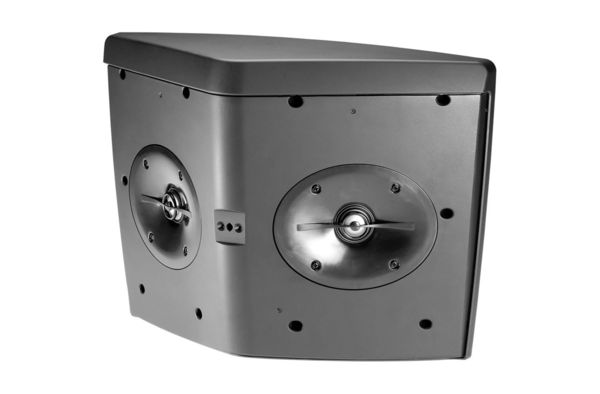

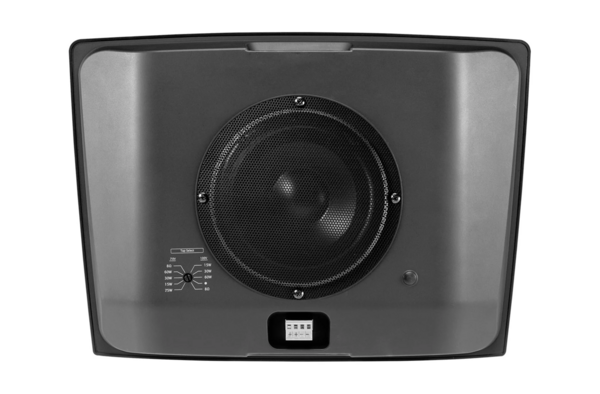

Drivers	LF: CMMD ceramic metal matrix diaphragm cone, 25 mm voice coil; HF: Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, fluid-cooling
Enclosure	Fiberglass-reinforced ABS
Attachment	Four M6 points for U-bracket; additional M6 insert for safety cable; must use U-bracket; wall mount only
Baffle	Aluminum, painted to match cabinet color
Input Connectors	Removable locking euro-block 4-pin with screw terminals; two pins input, two pins parallel loop-through; max wire 12 AWG (2.5 mm2)
Outdoor Capability	IP54 per IEC529; exceeds Mil Spec 810 for humidity, salt spray, temperature & UV; meets ASTM G85 salt spray
Colors	Black (RAL9004)
Included Accessories	U-bracket, color-matched, zinc-rich extra-thick powder coated steel
Mounting Hardware	Included wall-mount bracket
