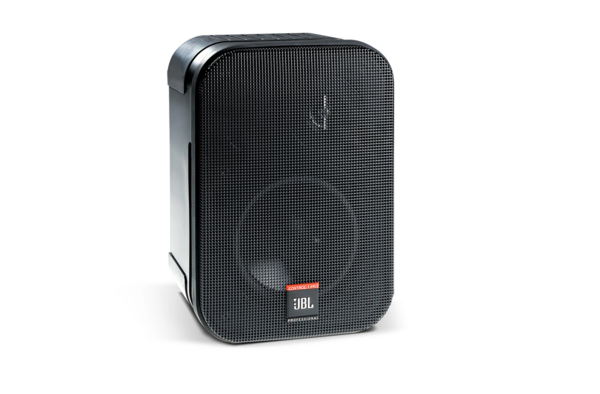

CSS-1S/T | COMPACT 2-WAY 100V/70V/8 SURFACE-MOUNT LOUDSPEAKER. 5¼” LF AND ¾” HF, 85 HZ – 18 KHZ, 10W MULTI-TAP

The CSS-1S/T is a compact two-way loudspeaker designed to operate on 100V or 70V distributed speaker lines, as well as in an 8-ohm direct connection. It features a 135 mm (5.25 inch) low-frequency driver and a 19 mm (0.75 inch) polycarbonate dome tweeter, providing full-range sound reproduction. The loudspeaker is engineered to deliver clear audio output suitable for both foreground and background sound applications.

• 10 Watt Multi-Tap Transformer for 100V or 70V Speaker Lines
• 8 Ohm Direct Setting
• Wall-Mounting Bracket
• Professional Drivers and Network

Frequency Range	85 Hz – 18 kHz
Power Capacity	60 W
Sensitivity	86 dB SPL, 1W at 1m
Maximum SPL	106 dB at 8 Ohm Direct setting
Nominal Coverage	120ºH x 120ºV
Directivity Factor (Q)	6.2
Directivity Index (DI)	7.9 dB
Nominal Impedance	8 ohms (selectable)
Transformer Taps	10 W, 5 W, 2.5 W @ 70V
Crossover Frequency	4.3 kHz
