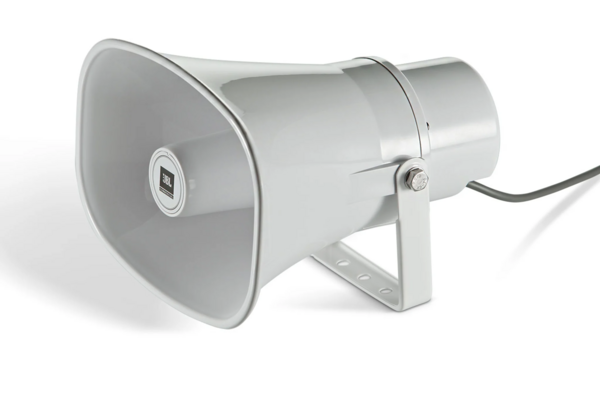

CSS-H15 | 15W PAGING HORN (6 IN MASTERPACK / PRICED PER EACH)

The Commercial Solutions Series CSS-H15 Paging Horn is a 15-watt device designed for public address systems, including paging, intercom, security, alarm, and industrial applications. It features a wide coverage pattern to project sound over a larger area. The unit is constructed to meet IP65 standards for weather resistance, making it suitable for both indoor and outdoor installations.

• Excellent voice clarity for announcement and paging
• High sensitivity for high sound levels with minimal power
• 70° horizontal by 90° vertical coverage for medium throw
• Phenolic diaphragm driver for outdoor durability

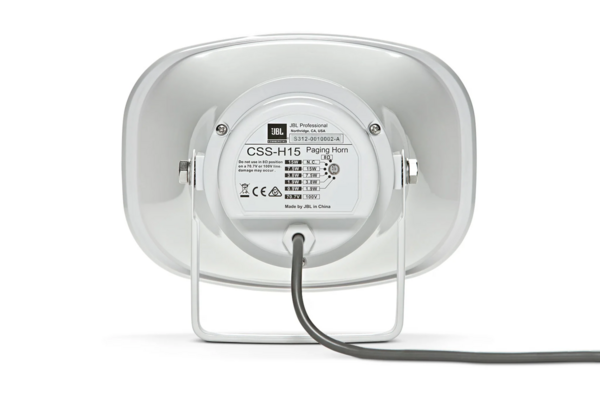

• UL-registered 15-watt multi-tap transformer with 8 ohm direct bypass
• Built-in high-pass filter protects against low frequency damage
• Highly weather-resistant with stainless steel bracket and hardware

Frequency Range	400 Hz – 7.5 kHz
Coverage Angle	70°H x 90°V
High-Pass Filter	Passive 350 Hz built-in
Directivity Factor (Q)	10.9 at 2 kHz
Directivity Index (DI)	10.4 at 2 kHz
Power Rating	15 W continuous (60 W peak), 100 hours
Sensitivity	105 dB avg 1 kHz – 6 kHz; 111 dB at 2 kHz
Maximum SPL	117 dB continuous avg (123 dB peak), 1 kHz – 6 kHz; 123 dB continuous avg (129 dB peak) at 2 kHz, 15W input, 8 ohm
Impedance	various taps from 8 ohms direct to 5332 ohms at 100 V
Outdoor Capability	IP-65 rating, salt spray tested, stainless steel hardware
