CSS8004 | 4" COMMERCIAL SERIES CEILING SPEAKER. 90 DB SENS, 5W MULTI-TAP FOR 100V/70V 25V, PRE-ASSEMBLED
CSS8004
4" COMMERCIAL SERIES CEILING SPEAKER. 90 DB SENS, 5W MULTI-TAP FOR 100V/70V 25V, PRE-ASSEMBLED
CSS8004
4" COMMERCIAL SERIES CEILING SPEAKER. 90 DB SENS, 5W MULTI-TAP FOR 100V/70V 25V, PRE-ASSEMBLED
- UM : EA

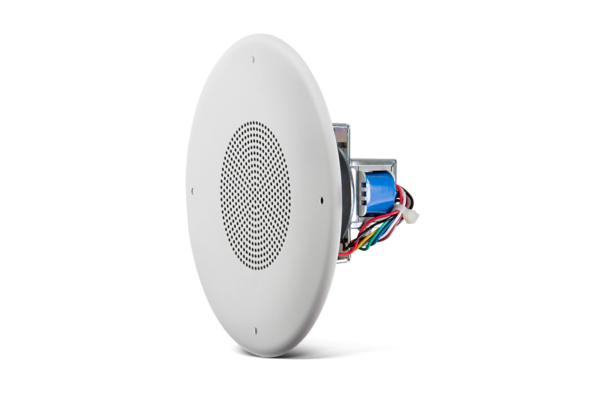

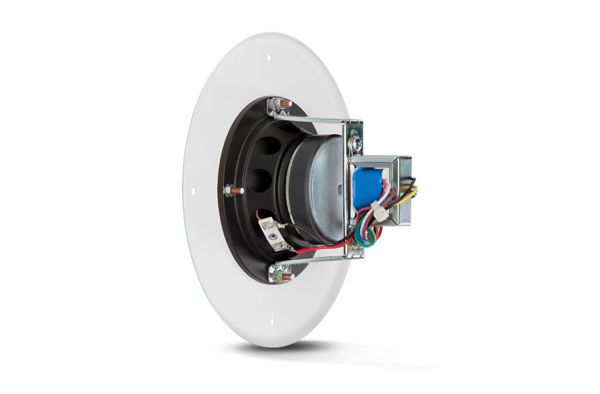

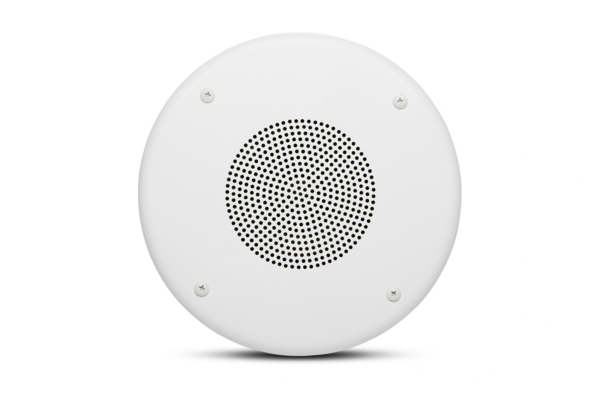

The 100 mm (4 in) Commercial Series Ceiling Speakers by JBL are designed for ceiling installation in paging and background music systems. These speakers feature a high sensitivity rating, enabling efficient sound output at low power tap settings. The design supports reliable audio reproduction suitable for commercial environments.
- 90 dB sensitivity
- 5 Watt multi-tap transformer for 100V, 70V, and 25V lines
- 175° coverage

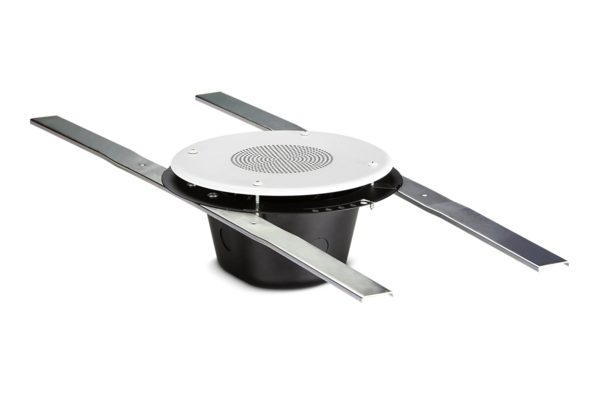

- Fits CSS-BB4 backcan
| Drivers | 100 mm |
|---|---|
| Sensitivity | 90 dB (2k - 6k Hz) |
| Frequency Range | 85 Hz – 18 kHz |
| Coverage Angle | 175° conical |
| Driver Continuous Power Handling | 15 W |
| Transformer Taps | 5W, 2.5W, 1.3W, 0.7W |
| Transformer Insertion Loss | 1.5 dB max |
| Transformer Connection | Bare wire |
| Safety Agency | UL1480, UL2043, NFPA 90, NFPA 70, IEC60849/EN60849 compliant |
| Maximum SPL (1m) | 97 dB |
