CSS8008 | 8" COMMERCIAL SERIES CEILING SPEAKER. 96 DB SENS, 5W MULTI-TAP FOR 100V/70V 25V, PRE-ASSEMBLED
CSS8008
8" COMMERCIAL SERIES CEILING SPEAKER. 96 DB SENS, 5W MULTI-TAP FOR 100V/70V 25V, PRE-ASSEMBLED
CSS8008
8" COMMERCIAL SERIES CEILING SPEAKER. 96 DB SENS, 5W MULTI-TAP FOR 100V/70V 25V, PRE-ASSEMBLED
- UM : EA
- Estimated Weight: 4.6

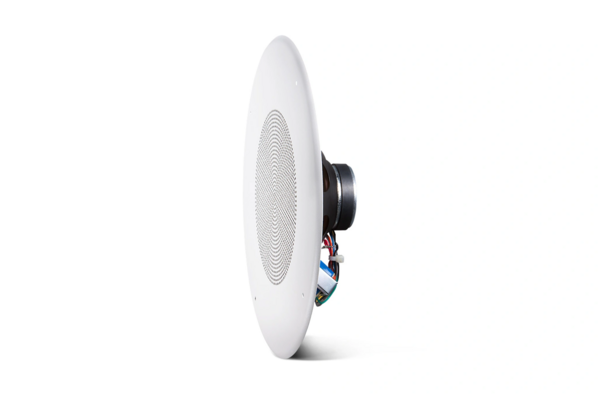

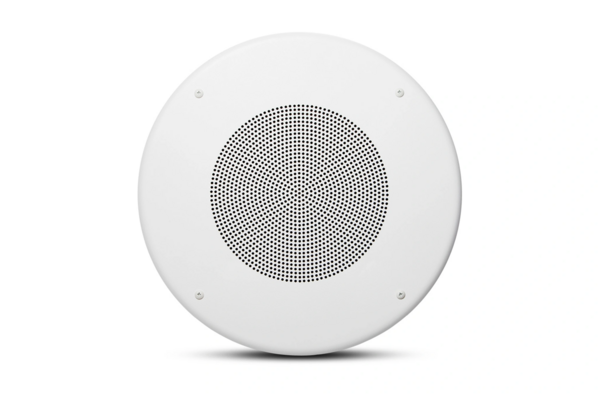

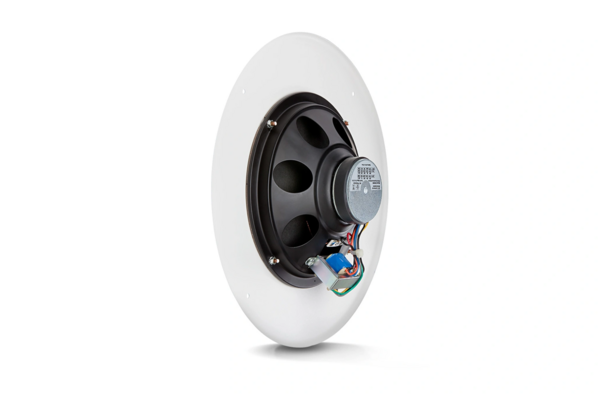

The Commercial Series Ceiling Speakers have a diameter of 200 mm (8 inches) and are designed for ceiling installation. These speakers feature high sensitivity, enabling them to deliver sound at elevated levels while operating at low input power settings. They are suitable for applications such as paging and background music.
- 96 dB sensitivity
- 5 Watt multi-tap transformer for 100V, 70V, and 25V lines
- 120° conical coverage
- Fits CSS-BB8 backcan
| Driver | 200 mm (8 in) full-range |
|---|---|
| Sensitivity | 96 dB (2k - 6k Hz) |
| Frequency Range (-10 dB) | 55 Hz – 16 kHz |
| Coverage Angle | 120° conical |
| Driver Continuous Power Handling | 15 W |
| Transformer Taps | 5W, 2.5W, 1.3W, 0.7W |
| Transformer Insertion Loss | 1.5 dB maximum |
| Safety Agency Compliance | UL1480, UL2043, NFPA 90, NFPA 70, IEC60849/EN60849 |
| Maximum SPL (1m) | 103 dB |
| Color | White |
