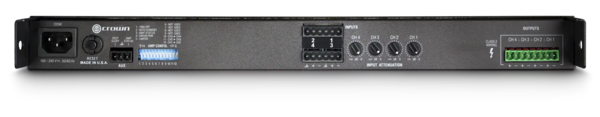

CT4150 | 4CH POWER AMPLIFIER - 4 X 125W PER CHANNEL @ 4OHM & 8OHM/ ADDITIONAL XFMR 4/8 NEEDED FOR 70V OR 100V

  • MAP: $2,148.00 / EA
  • List Price: $2,148.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
4CH POWER AMPLIFIER - 4 X 125W PER CHANNEL @ 4OHM & 8OHM/ ADDITIONAL XFMR 4/8 NEEDED FOR 70V OR 100V
4CH POWER AMPLIFIER - 4 X 125W PER CHANNEL @ 4OHM & 8OHM/ ADDITIONAL XFMR 4/8 NEEDED FOR 70V OR 100V
Click image to enlarge
4CH POWER AMPLIFIER - 4 X 125W PER CHANNEL @ 4OHM & 8OHM/ ADDITIONAL XFMR 4/8 NEEDED FOR 70V OR 100V
4CH POWER AMPLIFIER - 4 X 125W PER CHANNEL @ 4OHM & 8OHM/ ADDITIONAL XFMR 4/8 NEEDED FOR 70V OR 100V

CT4150
4CH POWER AMPLIFIER - 4 X 125W PER CHANNEL @ 4OHM & 8OHM/ ADDITIONAL XFMR 4/8 NEEDED FOR 70V OR 100V

  • UM : EA
  • Estimated Weight: 15.0

Powering this remarkable amplifier is the pioneering technology of DriveCore, which integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design.

Features:

  • Flexible input routing
  • Convection cooled
  • Universal power supply
  • Integrated life-safety features
  • Up to 8x125w in 1u chassis with no fan
  • Drivecore technology provides >90% efficiency with no compromise in performance
  • Patented feedback and protection circuits
  • Amplifier is stable for 2 – 16ohmloads
  • Xfmr 4/8 needed for 70v/100v applications
Channels4
Sensitivity1.4 V
Rated power output (all channels driven)125W per CH @ 4 ohms, 125W per CH @ 8 ohms
Signal to noise ratio (below rated power 20 hz to 20 khz, a-weighted)110 dB
Thd (full rated power, 20 hz - 20 khz)< 0.05%
Intermodulation distortion (from 0 db down to -30 db)< 0.05%
Frequency response (at 1w, 4/8 ohms)+/- 0.5 dB
Crosstalk (below rated power) 20 hz to 1 khz> 70 dB
Common mode rejection (20 hz to 1 khz)> 55 dB, typically > 70 dB
Voltage gain27 dB
Dc offset+/- 20mV
Idle power consumption (standard mode)17.5W
Iec power connector15A
Product Specifications
Brand Crown
