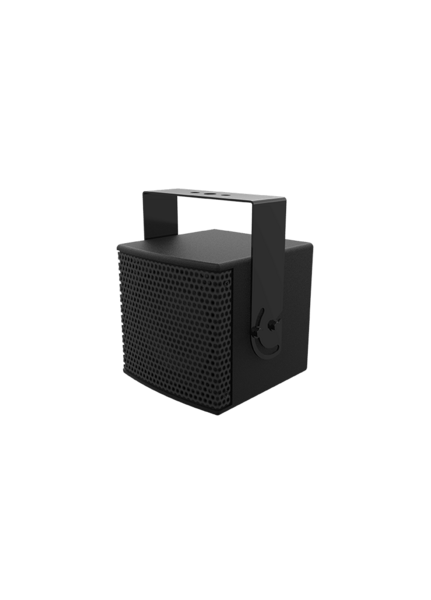

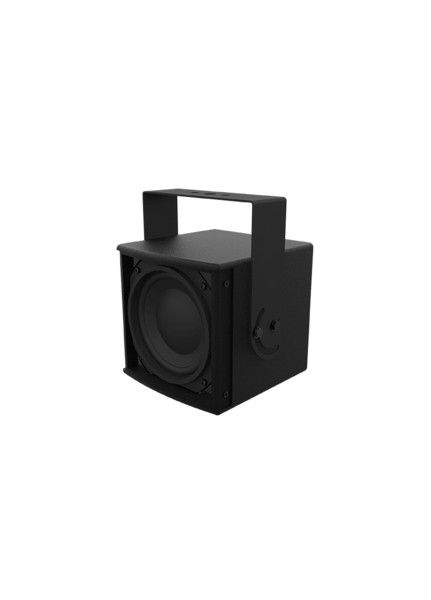

CUBE-B | ULTRA COMPACT 6” COAXIAL LOUDSPEAKER, 100° CONICAL COVERAGE, INCLUDES U-BRACKET / BLACK
CUBE-B
ULTRA COMPACT 6” COAXIAL LOUDSPEAKER, 100° CONICAL COVERAGE, INCLUDES U-BRACKET / BLACK
CUBE-B
ULTRA COMPACT 6” COAXIAL LOUDSPEAKER, 100° CONICAL COVERAGE, INCLUDES U-BRACKET / BLACK
- UM : EA
- Estimated Weight: 15.0
Discreet in appearance only, the Cube features a robust, 6-inch coaxial driver, which delivers both power and clarity. And this addition to the Danley line meets the need for a compact installed speaker that performs like a much larger product.
Features
- U Bracket Included
- 400 Watt Program
- 6” Coaxial Driver
- Synergy Horn Technology
Coverage ____________________________________________________ 100° Conical |
Operating Frequency Range ______________________________ 95Hz - 23KHz -6dB |
_____________________________________________________ 80Hz - >24KHz-10dB |
Sensitivity ___________________________ 86dB (measured as 2.83V @1m distance) |
Maximum Output ___________________________109 dB SPL Cont., 115 dB SPL Peak |
___________________________ M noise Measured 111dB SPL Cont., 128 dB SPL Peak |
Power Handling ____________________________ 200 Watts Cont., 800 Watts Peak |
Recommended Amplifier Power __________________________________ 400 Watts |
Impedance ______________________________________________________ 8 Ohm |
Recommended Processing ______________ 90 Hz high pass @ 24 dB / Butterworth |
Drivers _____________________________________________________ 1 x 6” Coaxial |
Input Connections ___________________________________ 1x NL4 1x Barrier Strip |
Enclosure Material _________________________ 15mm Baltic Birch, polyurea coated |
Weight___________________________________________________________ 15 Ibs |
Dimensions _____________________________________________ 7.5” x 7.5” x 8.25” |
