CWT128 | CROSSFIRED WAVEGUIDE TECHNOLOGY. EXTREMELY WIDE COVERAGE DUAL 8”, DUAL 2408H-1 COMPRESSION

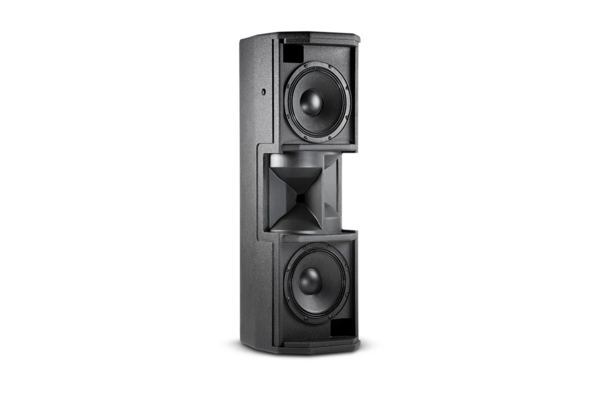

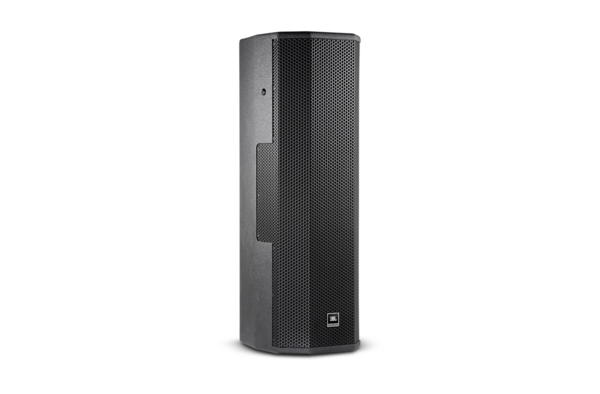

The JBL CWT128 is a dual 8-inch, two-way loudspeaker system that incorporates Crossfired Waveguide Technology (CWT) to achieve wide-angle sound coverage. This compact full-range system is engineered to deliver horizontal coverage of 160 degrees, utilizing a specialized horn design to maintain consistent dispersion across the coverage area. The CWT128 is designed to offer high sound pressure levels and broad frequency response within a single enclosure. Its compact dimensions result in a footprint approximately one-third the size of two speakers placed side by side, making it suitable for installation in environments where space and architectural considerations are critical.

• Seamless horizontal coverage of 160°
• Compact size and small footprint
• Dual 205 mm (8 in) LF transducers

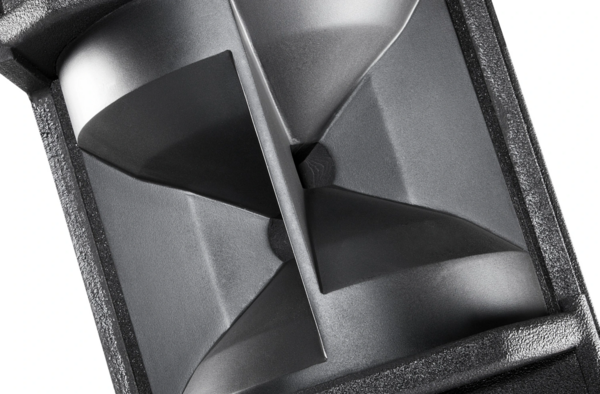

• Wide coverage 160° x 60° waveguide
• Dual 25 mm (1 in) exit, 38 mm (1.5 in) diaphragm compression driver
• Easy installation with 4 M10 attachment points
• 4 M8 points for OmniMount wall brackets
• Weather resistant versions available

Frequency Range	71 Hz - 20 kHz
Frequency Response	96 Hz - 19 kHz
Coverage Pattern	160° x 60°
Maximum SPL	129 dB
Nominal Impedance	8 Ohms
Long-Term Power Rating	450W (1800W Peak)
System Power Rating	850W Continuous, 1700W Program, 3400W Peak
Crossover Frequency	1.5 kHz
LF Driver	2 x 8 in SFG driver with 2.5 in voice coil
HF Driver	2 x 1 in exit compression driver with 1.5 in voice coil
