CWT128-WRX | WITH EXTREME WEATHER PROTECTION TREATMENT. REFER TO WEATHER RESISTANT CONFIGURATIONS FOR AE,
CWT128-WRX
WITH EXTREME WEATHER PROTECTION TREATMENT. REFER TO WEATHER RESISTANT CONFIGURATIONS FOR AE,
CWT128-WRX
WITH EXTREME WEATHER PROTECTION TREATMENT. REFER TO WEATHER RESISTANT CONFIGURATIONS FOR AE,
- UM : EA
- Estimated Weight: 78.0

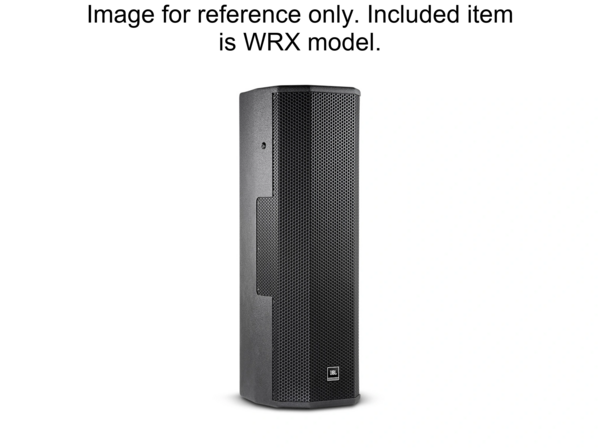

The JBL CWT128 is a dual 8-inch, two-way loudspeaker system incorporating Crossfired Waveguide Technology (CWT) to deliver wide-angle sound coverage. The system features a full-range configuration with a wide coverage pattern horn designed to provide horizontal dispersion up to 160 degrees. It is engineered to offer extended bandwidth and high sound pressure levels within a compact enclosure. The CWT128’s design reduces the overall footprint, occupying approximately one-third the space compared to two separate speakers arranged side by side, making it suitable for installations with limited architectural space.
- Seamless horizontal coverage of 160°
- Compact size and small footprint
- Dual 205 mm (8 in) LF transducers
- Wide coverage 160° x 60° waveguide
- Dual 25 mm (1 in) exit, 38 mm (1.5 in) diaphragm compression driver
- Easy installation with 4 M10 attachment points
- 4 M8 points for OmniMount wall brackets
- Weather resistant versions available
| Frequency Range | 71 Hz - 20 kHz |
|---|---|
| Frequency Response | 96 Hz - 19 kHz |
| Coverage Pattern | 160° x 60° |
| Maximum SPL | 129 dB |
| Nominal Impedance | 8 Ohms |
| Long-Term Power Rating | 450W (1800W Peak) |
| System Power Rating | 850W Continuous, 1700W Program, 3400W Peak |
| Crossover Frequency | 1.5 kHz |
| LF Driver | 2 x 8 in SFG driver with 2.5 in voice coil |
| HF Driver | 2 x 1 in exit compression driver with 1.5 in voice coil |
