CZ-BP340 | BP340 BELTPACK WITHOUT HEADSET: TWO-CHANNEL WIDEBAND 7KHZ BELTPACK WITH 2 BAT41 BATTERIES AND POUCH.
CZ-BP340
BP340 BELTPACK WITHOUT HEADSET: TWO-CHANNEL WIDEBAND 7KHZ BELTPACK WITH 2 BAT41 BATTERIES AND POUCH.
Click image to enlarge
CZ-BP340
BP340 BELTPACK WITHOUT HEADSET: TWO-CHANNEL WIDEBAND 7KHZ BELTPACK WITH 2 BAT41 BATTERIES AND POUCH.
- UM : EA

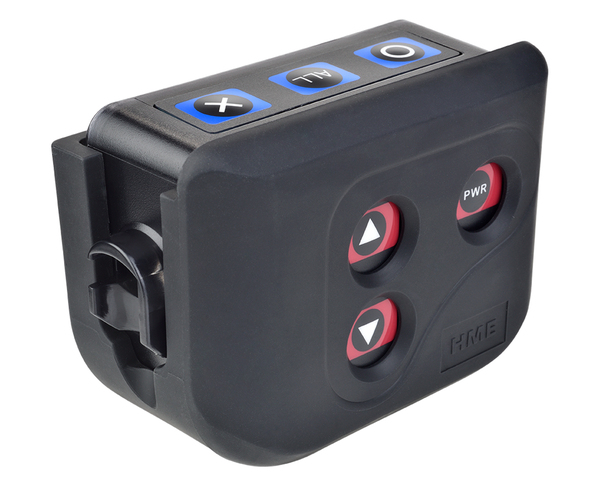

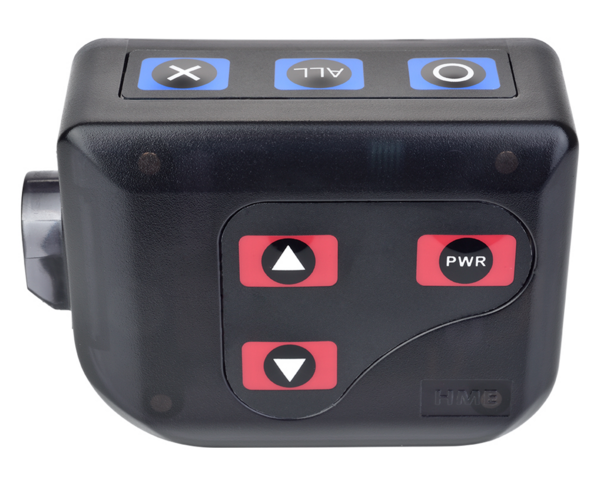

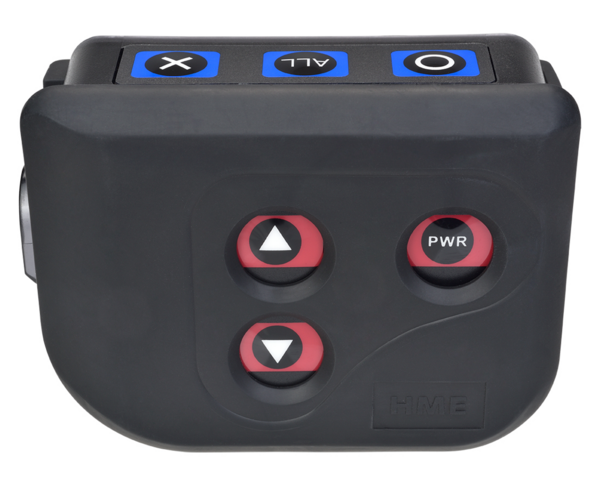

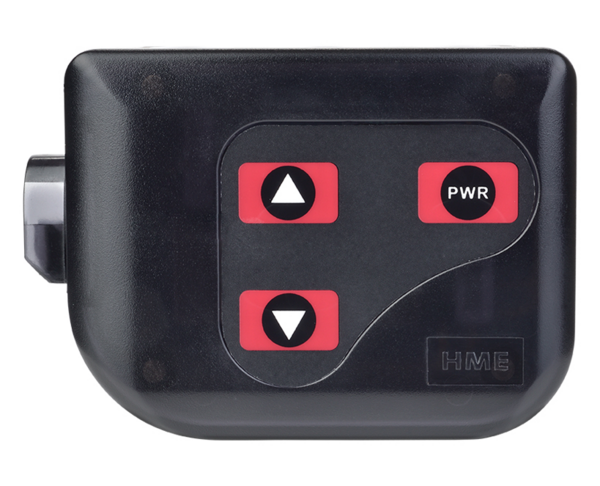

The CZ-BP340 is a lightweight beltpack designed for use with the DX340ES digital wireless system. It operates within the license-free 2.4 GHz frequency band. The beltpack is compatible with the BS340 base station.
Features:
- 2.4ghz license-free operation
- Up to 4 full-duplex or 15 half-duplex beltpacks or handsets per base station
- 7khz wideband audio
- Single or dual-channel operation
- Lightweight ergonomic design
- Weighs 7.4 oz
- Rugged and reliable
- Voice prompts
- Internal antenna
- Up to 20 hours battery life
- Uses bat41 batteries and ac40 battery charger
| Frequency range | All (2400 – 2483.5mhz), low (2401.92 to 2439.936mhz) or high band (2443.392 to 2481.408mhz) |
|---|---|
| Frequency response | 200hz to 7khz |
| Security | 64-bit encryption |
| Transmit/receive | Frequency-hopping, spread spectrum (fhss) |
| Transmit power | 100mw burst |
| Modulation type | Gaussian filtered fsk, tdma |
| Frequency stability | 13ppm |
| Harmonics/spurious | Exceeds fcc and etsi over temperature |
| Rf sensitivity | <-90dbm w 10-3 ber |
| System distortion | <2% |
×
×
×
×
