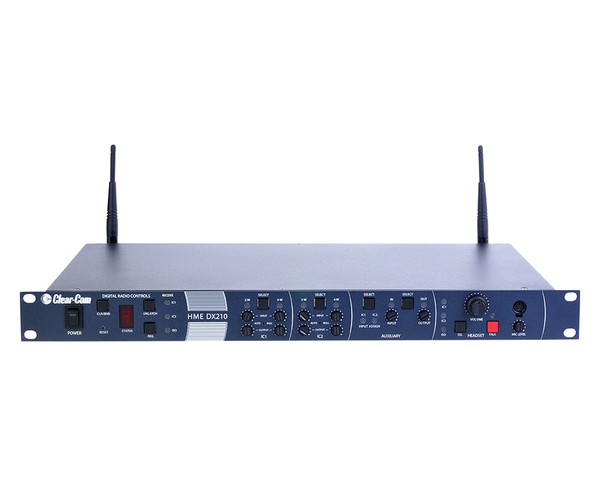

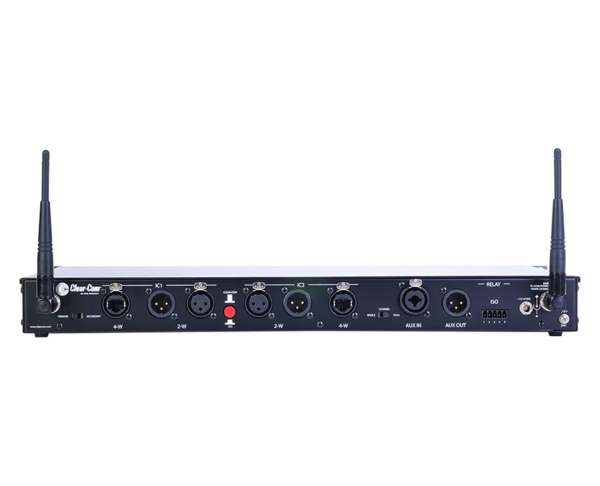

CZ11515 | 4-UP DX210 SYSTEM WITHOUT HEADSETS:  BS210 LICENSE-FREE BASE STATION W/2 ANTENNAS; 115-230 VAC

  • MAP: $11,740.00 / EA
  • List Price: $11,740.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
4-UP DX210 SYSTEM WITHOUT HEADSETS:  BS210 LICENSE-FREE BASE STATION W/2 ANTENNAS; 115-230 VAC
4-UP DX210 SYSTEM WITHOUT HEADSETS:  BS210 LICENSE-FREE BASE STATION W/2 ANTENNAS; 115-230 VAC
Click image to enlarge
4-UP DX210 SYSTEM WITHOUT HEADSETS:  BS210 LICENSE-FREE BASE STATION W/2 ANTENNAS; 115-230 VAC
4-UP DX210 SYSTEM WITHOUT HEADSETS:  BS210 LICENSE-FREE BASE STATION W/2 ANTENNAS; 115-230 VAC

CZ11515
4-UP DX210 SYSTEM WITHOUT HEADSETS:  BS210 LICENSE-FREE BASE STATION W/2 ANTENNAS; 115-230 VAC

  • UM : EA

The BS210 is compatible with the DX210 digital wireless system.

Features:

  • 2 channels communication
  • 2.4GHz license-free operation
  • Supports 4 full-duplex or 11 half-duplex beltpacks or all-in-one headsets
  • Link up to 4 co-located base stations
  • Two separate 2-wire and 4-wire interconnections
  • Digital auto-nulling
  • Wireless ISO talk-round
  • Relay (GPIO) actuation with ISO function
  • Feedback protection for un-terminated 2-wire channels
  • Triple diversity (space, time, frequency) operation
TX & RX Antenna ½-Wave, Dual Diversity Dipole
4-Wire I/O RJ45, 600Ω Balanced, Level Adjustable, Simultaneous Operation with 2-Wire (x2)
2-Wire I/O XLR-3F & 3M, Externally-Switchable RTS or ClearCom Mode, 200Ω, Level Adjustable, Null Adjustable
Auxiliary Input XLR-3F/¼” Phone Combo Jack, 600Ω Balanced, Level Adjustable
Auxiliary Output XLR-3M, 600Ω Balanced, Level Adjustable
Headset I/O N/A
Headset Connector 4-Pin Mini-DIN
Headset Output 250mW into 32Ω
Power Requirements 100-240V AC, 50-60Hz or 12-14V DC
