CONTROL 426LP | 6.5" CRBI™-EQUIPPED TWO-WAY COAXIAL CEILING LOUDSPEAKER WITH LOW-PROFILE ENCLOSURE
CONTROL 426LP
6.5" CRBI™-EQUIPPED TWO-WAY COAXIAL CEILING LOUDSPEAKER WITH LOW-PROFILE ENCLOSURE
CONTROL 426LP
6.5" CRBI™-EQUIPPED TWO-WAY COAXIAL CEILING LOUDSPEAKER WITH LOW-PROFILE ENCLOSURE
- UM : EA

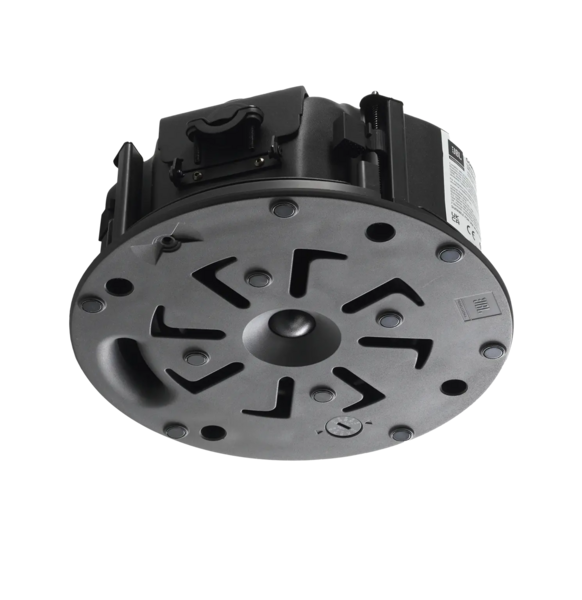

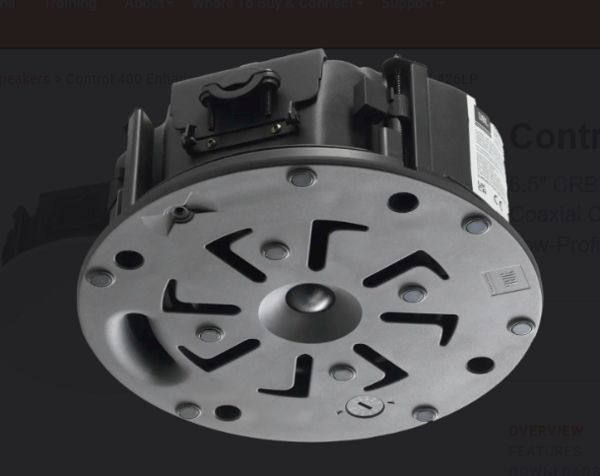

The JBL Control 426LP is a two-way coaxial ceiling loudspeaker equipped with a 6.5-inch woofer housed in a low-profile enclosure designed for installations with limited ceiling plenum space. It features integrated Coplanar Radial Boundary Integrator (CRBI) technology that delivers a 110° coverage angle with consistent sound dispersion, reducing on-axis peaks and off-axis dropouts to maintain uniform audio performance across the coverage area. The speaker includes a built-in transformer supporting both 70V/100V and low impedance operation, enabling adaptable use in various audio distribution systems.
- Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter

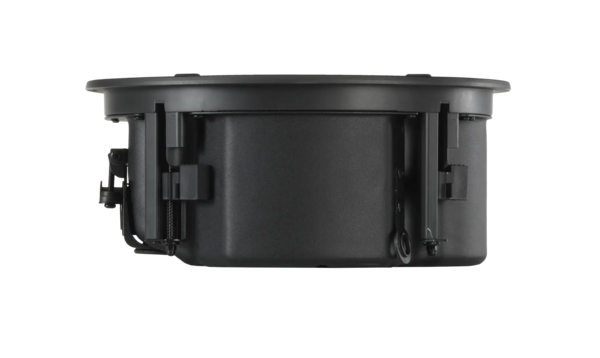

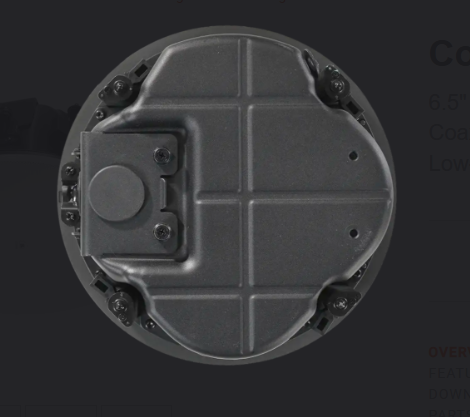

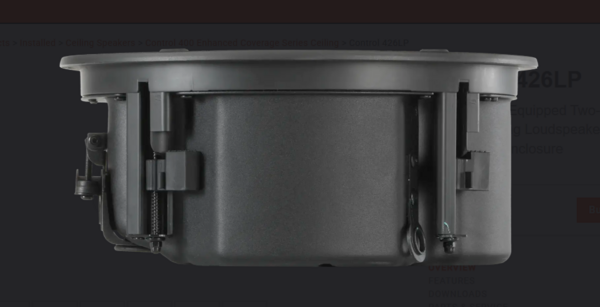

- Low-profile enclosure (<100mm deep) for restricted ceiling space
- CRBI™ technology for consistent sound coverage
- Built-in 70V/100V multi-tap transformer and 12-ohm direct input

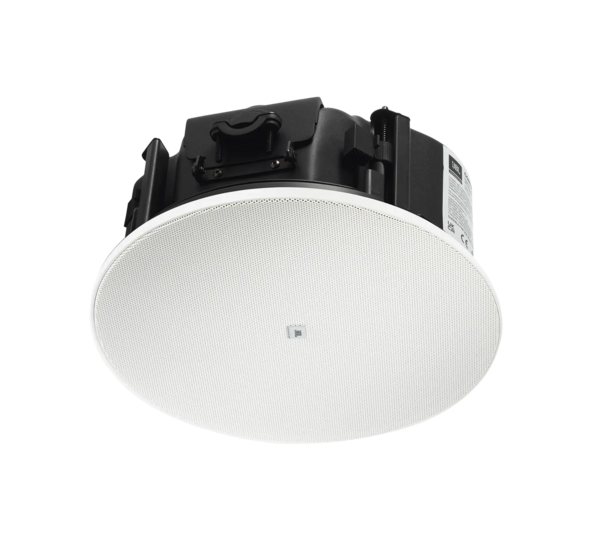

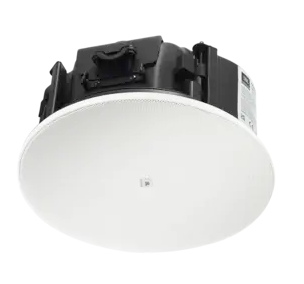

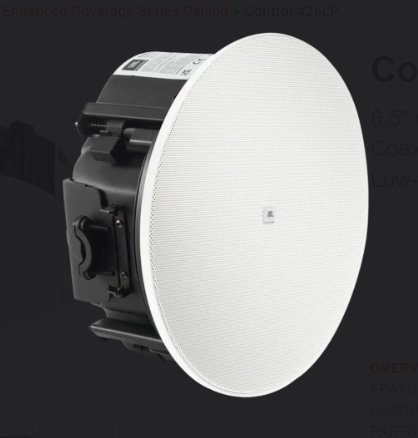

- Full-face, paintable magnetic grilles
- Black and square magnetic accessory grilles
- Top and side cable exit options
- Robust dogears for wide range of ceiling thicknesses
- IP33 rated
| Frequency Range | 95 Hz – 19 kHz |
|---|---|
| Power Capacity | 220 W Continuous Program (2 hrs), 110 W (440 W Peak), 75 W Continuous Pink Noise (2 hrs), 300 W Peak |
| Sensitivity | 89 dB |
| Coverage Angle | 110° conical |
| Maximum SPL (1m) | 109 dB continuous pink noise, 115 dB peak |
| Nominal Impedance | 12 ohms |
| Transformer Taps | 70 V: 60 W, 30 W, 15 W & 7.5 W; 100 V: 60 W, 30 W, 15 W |
| Safety Agency Rating | UL1480A, UL2043, NFPA90, NFPA70, S7232/UL, CSA C22.2 no. 205, IEC60849/EN60849 compliant |
| Environmental | Exceeds Mil Spec 810H for humidity, salt spray, temperature & UV; IP33 rating; RoHS2 compliant; Operating temperature 0°C to 45°C |
