D-ARCBDISTRO4 | DIVERSITY ARCHITECTURAL ANTENNA DISTRO4 PACKAGE, BLACK

The RF Venue D-ARCBDISTRO4 package combines the Diversity Architectural Antenna™ with the DISTRO4 antenna distribution system, delivering a complete, turnkey RF solution for wireless microphone installations. The Diversity Architectural Antenna features a slim, low-profile design that mounts discreetly on walls or ceilings, blending seamlessly into any architectural environment while maintaining superior diversity reception. Paired with the DISTRO4, a compact, professional-grade antenna distribution amplifier, this package supports up to four wireless receivers out of the box and can be expanded with additional DISTRO4 units for larger systems. Engineered for consistent, dropout-free wireless audio performance, the D-ARCDISTRO4 is ideal for conference rooms, houses of worship, auditoriums, and other venues where aesthetics and reliable RF management are critical.

Use Options: Conference rooms and corporate AV installations - Houses of worship needing discreet RF coverage - Performing arts centers, theaters, and auditoriums - Multi-receiver wireless microphone systems - Education and government installations

About the Diversity Architectural Antenna

Featuring a slim profile enclosure, the Diversity Architectural Antenna can be installed in any position on a wall or ceiling and can be painted to match any interior.  Using a unique patent-pending dual-feed antenna design, both A and B diversity connections are provided, so there's no need to install two separately spaced antennas.

The Diversity Architectural antenna installs in minutes, with a wall or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options.  The rear plate then simply connects to the front plate, secured with the included mounting screws.  Simply connect the two rear-mounted BNC terminated coaxial cables to your in-wall or in-ceiling coaxial cable run and the Diversity Architectural is ready for use.

The Diversity Architectural antenna builds on the highly acclaimed Diversity Fin, eliminating the most common signal dropouts caused by changes in angle and orientation of the RF signal.  Ideally suited for conference rooms, multi-purpose meeting spaces, training rooms, and houses of worship, the Diversity Architectural fits into any interior design and delivers professional RF performance in a sleek industrially designed enclosure.

About the DISTRO4

DISTRO4 is a 4-way powered antenna splitter plus cascade port with external power that allows you to share one pair of diversity antennas with up to 5 wireless receivers. Built in a full metal housing it ships with 8 BNC cables and 4 dc power cables to connect up your receivers.  Multiple DISTRO4s can be connected together up to 25 receivers to a single diversity pair of antennas.

About RF Venue Coaxial Cables

Coaxial cabling can make the difference between flawless RF performance and total system failure. Even the slightest crimp or ding in coaxial cable can cause signals to drop sharply or short out.

RF Venue provides premium made in USA low loss, 50O RG8X coaxial cable with BNC male connectors for wireless audio applications.

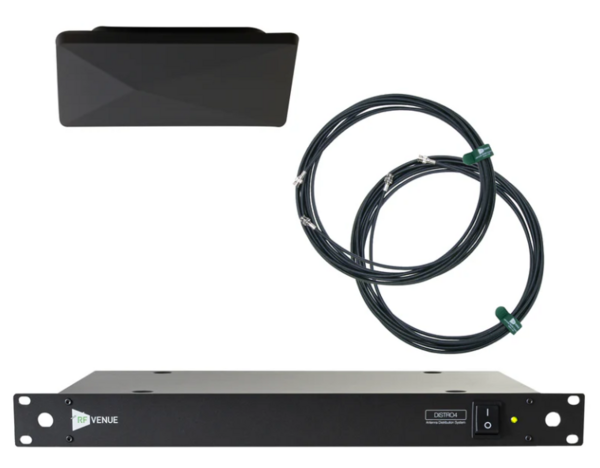

D-ARCDISTRO4 Package Contains:

(1) Diversity Architectural Antenna - Black

(1) DISTRO4 4 Channel RF+DC Power Distributor

(2) RG8X25 Coaxial Cables BNC - Black

(10) BNC jumpers

(4) DC jumpers,

(1) AC power cord

Features

• Blends into any background
• Doesn't Drop Out
• Two antennas in one package
• Lower cost - easy installation
