D-BZR | PIEZO ALERT MODULE

  • MAP: $145.66 / EA
  • List Price: $194.22 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times

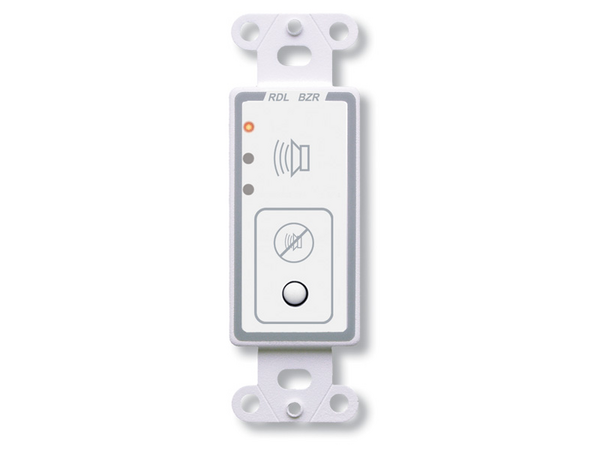

PIEZO ALERT MODULE
Click image to enlarge

D-BZR
PIEZO ALERT MODULE

  • UM : EA

Features:

  • Provides an Audible Alert of a Remote Condition
  • LED Alarm Indicator
  • Front-Panel Reset Button
  • Remote Reset Provision
  • Momentary or Latching Operation
  • Selectable Audio Level
Control Inputs TRIP and RESET (ground to activate)
Audible Alert Approx. 4 kHz 85 dB spl @ 10cm (loud), or 75 dBspl @ 10cm (soft)
Ambient Operating Environment 0° C to 55° C
Power Requirement 24 Vdc or ac @ 10 mA
Dimensions Height: 4.1 in.10.4 cm
Depth: 1.6 in.4.1 cm
Width: 1.3 in.3.3 cm
Package Type Cardboard Box
Tariff code 8543.70.9860
WEEE weight 0.255 lbs.
Shipping Weight 0.405 lbs.
Package Dimensions 3.625 x 4.625 x 2.125 in.
