D-CIJ3 | CONSUMER INPUT JACKS – MONO / WHITE PLATE
D-CIJ3
CONSUMER INPUT JACKS – MONO / WHITE PLATE
D-CIJ3
CONSUMER INPUT JACKS – MONO / WHITE PLATE
- UM : EA
- Estimated Weight: 1.0
The D/S-CIJ3 is the ideal choice in installations requiring the passive mixing of two unbalanced line level audio sources to feed a mono balanced (or unbalanced) audio line.

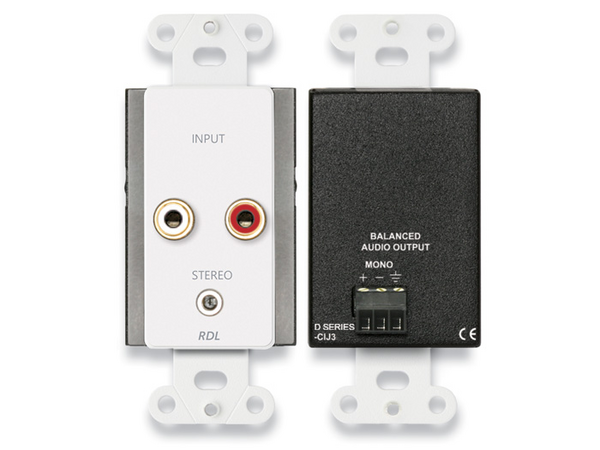

The D/S-CIJ3 is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are combined and balanced through audio transformers configured to reject induced hum. A mono line-level output is provided on the rear-panel detachable terminal block for connection to a 10 kΩ or higher input impedance line-level module or equipment input.
Features:
- Stereo Inputs to Mono Output
- Stereo Inputs on RCA Jacks and Stereo Mini-Jack
- Unbalanced to Balanced Conversion Without Gain
- Transformer Isolation for Unbalanced Line Inputs
- Hum Cancellation on Unbalanced Line Inputs
- Line-Level Output to Feed 10 kΩ Equipment Inputs
- Output Connections on Detachable Terminal Block
- Mix Stereo Inputs to Mono Balanced
| Input connectors (3) | Phono jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo) |
|---|---|
| Frequency response (line level) | 50 Hz to 20 kHz (±1 dB) 30 Hz to 20 kHz (±2 dB) |
| THD | <0.2% (1 kHz) |
| Output connector | Detachable terminal block |
| Ambient Operating Environment | 0° C to 55° C |
| Dimensions | Height: 4.13 in. 10.49 cm, Width: 1.7 in. 4.32 cm, Depth: 2.15 in. 5.47 cm |
| Mounting Box Minimum Dimensions | Width: 1.80 in. 4.57 cm, Depth: 1.75 in. 4.45 cm |
| Package Type | Cardboard Box |
| Tariff code | 8543.70.9860 |
| WEEE weight | 0.34 lbs. |
| Shipping Weight | 0.48 lbs. |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
