D-HPA3 | 3.5 WATT AUDIO POWER AND HEADPHONE AMPLIFIER
D-HPA3
3.5 WATT AUDIO POWER AND HEADPHONE AMPLIFIER
Click image to enlarge
D-HPA3
3.5 WATT AUDIO POWER AND HEADPHONE AMPLIFIER
- UM : EA
- Estimated Weight: 1.0

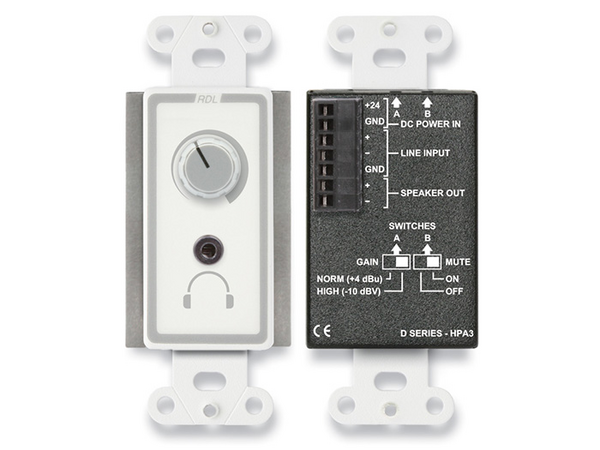

The D SERIES-HPA3 is a high efficiency 3.5 W power amplifier with one line input, an amplified output to drive a 4 or 8 ohm speaker and a separate headphone amplifier. The -HPA3 features a balanced line level input that may be connected unbalanced. The gain range will accommodate standard unbalanced levels as well as professional balanced levels. The amplified output levels are controlled by a front-panel volume control.
FEATURES
- - Wall-Mounted Amplifier with 2 Outputs
- - Balanced Input on the Rear Panel
- - Speaker Output on the Rear Panel
- - Mini-Jack Headphone Output on the Front Panel
- - Setting to Turn Off Power Amplifier upon Headphone Connection
- - Amplifier Muting Using Solid-State Switching
- - Single Gain Adjustment for the Speaker and Headphone Amplifiers
- - 3.5 Watt RMS Audio Amplifier into 8 Ohms
- - 6.5 Watt RMS Audio Amplifier into 4 Ohms
- - Output Drives 4 or 8 Ohm Speaker
- - High-Efficiency Class D Operation
- - Speaker Output Connection on Detachable Terminal Block
- - Ultra-Compact All Metal Construction
- - Thermal and Short-Circuit Protection
×
