D-PSP1 | DECORA-STYLE ACTIVE LOUDSPEAKER WITH VOLUME KNOB (USER LEVEL ADJUST) - WHITE

The D SERIES-J3 is a complete audio input panel assembly. The front panel features a female XLR jack and two phono jacks. The XLR is connected directly to the rear-panel barrier block. The phono jacks are intended for mono or stereo consumer level sources. LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. The line-level output is provided on the rear-panel terminal block for connection to 10 kΩ or higher input impedance line level module or equipment inputs. The back of the D SERIES-J3 is finished with a metal enclosure clearly labeled for easy installation.

The D SERIES-J3 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.

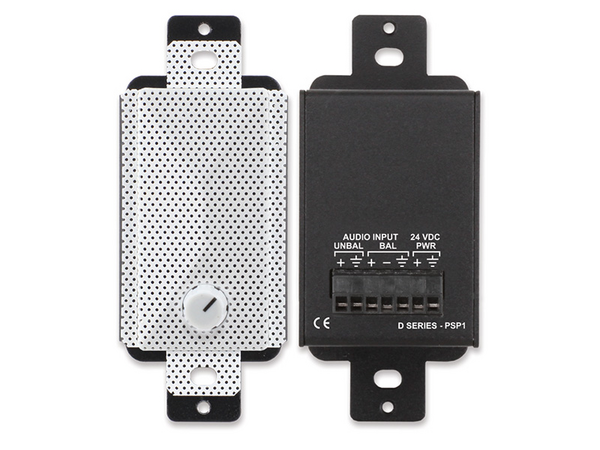

The D SERIES-PSP1 is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The input accepts either a -10 dBV unbalanced or a +4 dBu balanced signal on the rear-panel detachable terminal block. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is controlled by a front-panel volume control. The -PSP1 includes an analog compressor/limiter that makes higher sound output levels possible without clipping.

The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.

Features:

• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Balanced +4 dBu Input on the Rear Panel
• Unbalanced -10 dBV input on the Rear Panel
• Front-Panel Gain Adjustment
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface
