D-RC2ST | 2 CHANNEL REMOTE CONTROL FOR STICK-ONS
D-RC2ST
2 CHANNEL REMOTE CONTROL FOR STICK-ONS
D-RC2ST
2 CHANNEL REMOTE CONTROL FOR STICK-ONS
- UM : EA

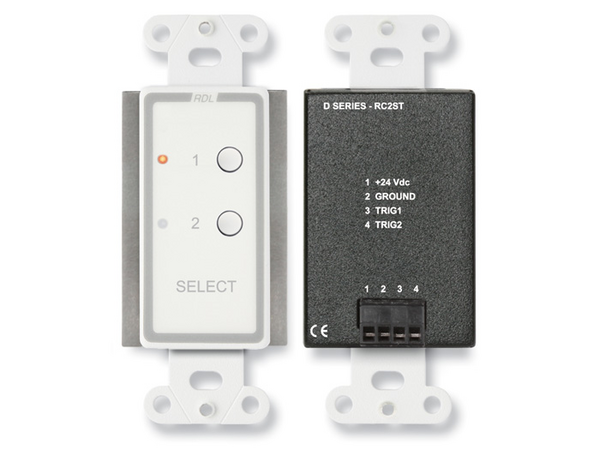

The front panel of the D-RC2ST features two pushbuttons with two associated LEDs. Upon initial power-up, source 1 is selected. Touching the other button de-selects source 1 and immediately selects source 2. An LED adjacent to each button shows which source is selected.
In a typical installation, the D-RC2ST may be used to select between two audio or video sources, or to route audio to two destinations. To select between two audio sources, the D-RC2ST is connected to an RDL ST-SSR1 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. For audio routing, an RDL ST-RX2 is used. In each of the above examples, only one output terminal is needed for triggering. Therefore a single shielded pair (or 3-conductor cable) is required for remote connection. For more complex switching networks, both outputs may be used.
Features:
- Remote Selection of 2 Audio Sources, Destinations or Functions
- Single-Button Selection for Each Source
- Open-collector Switching of 1 of 2 Module Functions
- 3-wire or 4-wire Remote Wiring
- Professional Aesthetic Appearance
- Companion to other RDL Remote Controls
| Selectors (2) | Momentary pushbuttons, (1 for each channel) |
|---|---|
| Indicators (2) | Red LEDs, (indicates channel selected) |
| Connections | Detachable terminal block Power input open-collector outputs (25 mA current limited) |
| Ambient Operating Environment | -10° C to 55° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 30 mA |
| Mounting | Mounts in standard US electrical box, RDL WB- or SMB- series boxes cover plate available separately |
| Package Type | Cardboard Box |
| Tariff code | 8543.70.9860 |
| WEEE weight | 0.215 lbs. |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | .365 lbs. |
