D-RN12 | 1X2 SINGLE-GANG BIDIRECTIONAL MIC/LINE DANTE/AES67 INTERFACE WITH XLR, POE, WHITE
D-RN12
1X2 SINGLE-GANG BIDIRECTIONAL MIC/LINE DANTE/AES67 INTERFACE WITH XLR, POE, WHITE
D-RN12
1X2 SINGLE-GANG BIDIRECTIONAL MIC/LINE DANTE/AES67 INTERFACE WITH XLR, POE, WHITE
- UM : EA
- Estimated Weight: 1.0

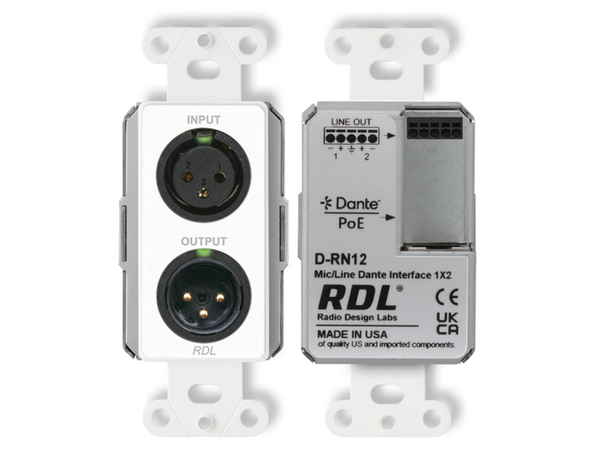

RDL D-RN12 is a single-gang, bidirectional Dante and AES67 audio interface that connects one local analog mic or line source to the network while returning two network audio channels to local analog equipment. The front panel provides a balanced XLR mic/line input and a software-selectable mic/line XLR output for convenient user access.
Two balanced line outputs are also available on the rear detachable wiring block. One carries the same network channel assigned to the front XLR output, while the second provides a separate network audio channel. This makes it easy to feed nearby amplifiers, powered speakers, recorders, or other installed audio equipment without running long analog audio lines back to the main AV rack.
The white D-RN12 installs in a standard US single-gang electrical box and receives power through its network connection using PoE. Input gain, P48 phantom power, output level, and attenuation are configured through RDL CONSOLE or compatible network control software. A Q-SYS plug-in is also available for use in Q-SYS-controlled commercial audio systems.
Features:
- Single-Gang Dante or AES67 Network Interface for One Audio Input and Two Audio Outputs
- Front-Panel Mic/Line Input on Balanced XLR Jack
- Balanced Line Output on Front-Panel Mic/Line XLR and on Rear-Panel Detachable Wiring Block
- Additional Line Output on Rear-Panel Detachable Wiring Block
- Software-Selected Input Gain; Mic: 35 dB, 42 dB or 59 dB; Line: Unity or 12 dB
- P48 Mic Phantom Selected by Software for Mic Input
- Front-Panel XLR Output is Software-Selectable for Mic or Line Level
- Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
- Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
- Compatible with RDL Network Remote Controls
- High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
- Legendary RDL Studio Quality, Low-Noise Performance
| TYPICAL PERFORMANCE | |
|---|---|
| Network Connector | RJ45 with Link and Speed indicators |
| Digital Audio Ethernet Protocol | Dante |
| Transmission Rate | 100 Mbps |
| Sample Rates Supported | 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz |
| Bit Depth Supported | 24 bits |
| Audio Operating Level | -18 dBFS = +4 dBu |
| Reference Level | : 0 dBFS = +22 dBu |
| Mic/Line Input to Network Interface | |
| Input | XLR (female) |
| Gain | : Mic: 35 dB (LOW), 42 dB (MED), 59 dB (HIGH) Line: Unity (NORM), 12 dB (HIGH) |
| Input Level (for +4 dBu/-18 dBFS) | Mic: -31 dBu (LOW), -38 dBu (MED), -55 dBu (HIGH) Line: +4 dBu (LOW), -8 dBu(HIGH |
| Input Level (maximum) | Mic: -14 dBu (LOW), -21 dBu (MED), -38 dBu (HIGH) Line: +23 dBu (LOW), +10 dBu (HIGH) |
| Input Impedance | > 1.2 kO |
| Phantom Power | P48, software-selectable |
| Standard for Phantom | : IEC 61938: 2013 |
| Selectors per input (2) | Phantom, Gain, software-selectable |
| Frequency Response | 20 Hz to 20 kHz (± 0.5 dB) |
| Equivalent Input Noise | < -128 dBu (59 dB gain) < -130 dBu A-Weighted |
| Noise below -18 dBFS (20 to 20 kHz) | Mic: < -88 dB (LOW), < -82 dB (MED), < -68 dB (HIGH) Line: < -88 dB (NORM),< -88 dB (HIGH) |
| THD+N | < 0.1% (20 Hz to 20 kHz, +4 dBu/-18 dBFS) |
| CMRR | > 65 dB (50 Hz to 120 Hz) |
| Crosstalk | Below Noise Floor (20 Hz to 20 kHz at operating level, any input to any input, max. mic gain) |
| Network to Mic/Line Outputs | |
| Outputs (2) | Balanced, XLR and detachable wiring block Balanced, detachable wiring block |
| Output Level (operating) | +4 dBu (nominal) balanced |
| Output Level (maximum) | +22 dBu balanced |
| Output Attenuator | Software-controlled, 0 to -63 dB and OFF (analog output per received networkchannel) |
| Output Impedance | 150 O balanced |
| Frequency Response | Mic: 20 Hz to 20 kHz (± 0.5 dB) Line: 20 Hz to 20 kHz (± 0.5 dB) |
| THD+N | < 0.1% |
| THD | < 0.01% (1 kHz) |
| Noise | < -80 dB (below +4 dBu) < -100 dB (below +22 dBu) |
| Crosstalk | : Below Noise Floor (20 Hz to 20 kHz at operating level, output to output) |
| Headroom above +4 dBu | > 18 dB |
| Indicators (4) | Ethernet Link and Speed (2, rear panel) Sync and Power (2, front panel) |
| Ambient Operating Environment | 0° C to 50° C |
| Power Requirement | PoE Class 0, IEEE 802.3af |
| Specification Conditions | Gain/Level: ± 1 dB Source termination: 150 O A to D values measured in digitaldomain |
| Dimensions | 1.80” (4.57 cm) W 4.11” (10.44 cm) H 2.09” (5.31 cm) D |
| Package Type | Cardboard Box |
| Package Dimensions | 2.75” (6.99 cm) x6.7” (17.02 cm) x6.25” (15.88 cm) |
| Shipping Weight | 0.695 lbs. (0.315 kg) |
| WEEE weight | 0.435 lbs. (0.197 kg) |
| US Tariff Code | 8543.70.9100 |
| EU Tariff Code | : 8543.70.0600 |
