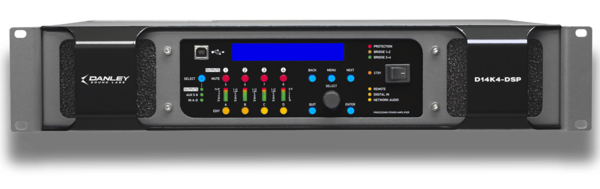

D14K4-DSP | 4CH AMPLIFIER 14000 TOTAL WATTS, WITH DSP

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
4CH AMPLIFIER 14000 TOTAL WATTS, WITH DSP
4CH AMPLIFIER 14000 TOTAL WATTS, WITH DSP
Click image to enlarge
4CH AMPLIFIER 14000 TOTAL WATTS, WITH DSP
4CH AMPLIFIER 14000 TOTAL WATTS, WITH DSP

D14K4-DSP
4CH AMPLIFIER 14000 TOTAL WATTS, WITH DSP

  • UM : EA

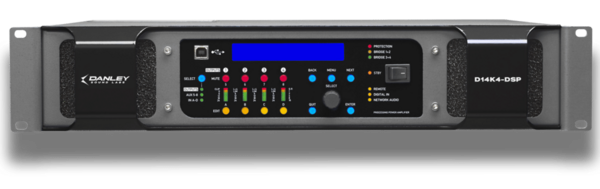

The Danley D14K4-DSP is a four-channel professional amplifier equipped with integrated digital signal processing (DSP) capabilities, including finite impulse response (FIR) filtering and dynamic equalization. It supports optional Dante networking, facilitating digital audio distribution. The DSP architecture comprises four local and four auxiliary DSP channels, both accessible via the network, enabling the amplifier to control a stereo four-way system without requiring external processing.

The amplifier employs Class-D power amplification to deliver high output power with increased efficiency and reduced heat dissipation. This design enables reliable operation in demanding audio applications while maintaining compact thermal performance.

Output @ 2ohms 3500W
Output @ 2.7ohms 3700W
Output @ 4ohms 2700W
Output @ 8ohms 1400W
4ohms Bridged 7000W
8ohms Bridged 5400W
Gain / Sensitivity 32dB / 10.7dBu
Bit Depth & Sample Rate 24 bit ADCs and DACs, 96kHz sampling and processing
AES & Networked Audio 44.1kHz – 192kHz
THD% @1 kHz < 0.08%, 20 Hz to 20 kHz < 0.1%
