D2402GY0500 | 2P 24G STRD SHLD DATA PVC
D2402GY0500
2P 24G STRD SHLD DATA PVC
D2402GY0500
2P 24G STRD SHLD DATA PVC
- UM : EA
- Estimated Weight: 14.0

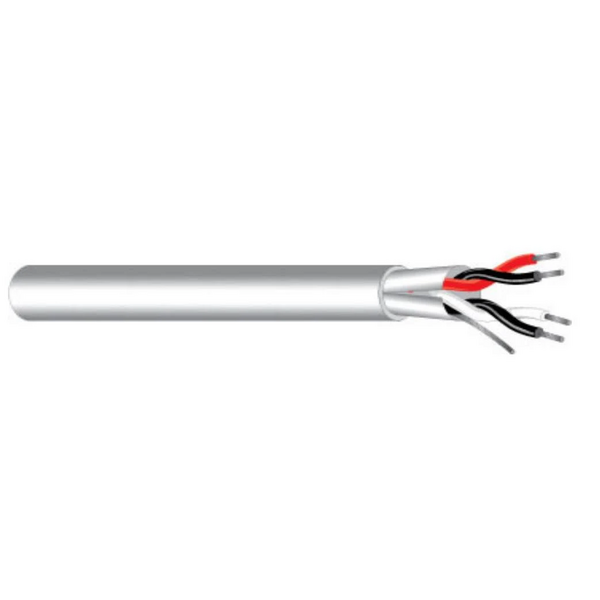

The West Penn Wire D2402 is a 2-pair, 24 AWG stranded, shielded data cable designed for serial communication and control applications in commercial AV environments. Featuring stranded bare copper conductors and overall aluminum foil shielding with drain wire, this cable offers excellent protection against EMI/RFI, ensuring reliable signal integrity for RS-232, RS-422, and RS-485 protocols. The non-plenum-rated gray PVC jacket is ideal for indoor use in applications where plenum-rated cable is not required. Built for flexibility and durability, the D2402 is a preferred solution for AV integrators installing control systems, automation devices, and other data-driven infrastructure across commercial buildings, schools, and industrial settings.
|
CONSTRUCTION & DIMENSIONS |
|
|
CONDUCTOR PARAMETER |
|
|
• Number of Pairs |
2 |
|
• AWG Size |
24 |
|
• Conductor Stranding |
7x32 |
|
• Conductor Type |
Tinned Copper |
|
• Nominal DCR |
26 Ohm/1000ft |
|
INSULATION PARAMETER |
|
|
• Insulation Type |
Polyolefin |
|
• Insulation Thickness |
0.013 in |
|
• Insulation Color Code |
1. Black-Red 2. Black-White |
|
SHIELDING PARAMETER |
|
|
• Shield Type |
Overall 100% Aluminum Foil |
|
• Drain Wire Type |
Tinned Copper |
|
• Drain Wire AWG |
24 AWG |
|
ELECTRICAL CHARACTERISTICS |
|
|
• Nominal Impedance |
100 Ohm |
|
• Nom. Cap. Between Conductors |
14.5 pF/ft |
|
• Nom. Cap. Conductor to Shield |
26 pF/ft |
