D800 V.2 | A-NET DISTRIBUTOR, WITH A-NET BRIDGE INPUT

Click image to enlarge

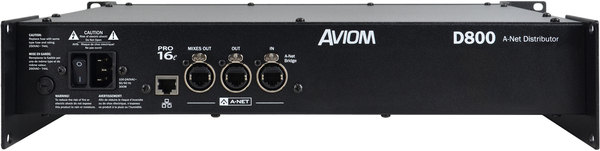

D800 V.2
A-NET DISTRIBUTOR, WITH A-NET BRIDGE INPUT

• UM : EA
• Estimated Weight: 15.0

Technical Specifications

A-Net to/from Personal Mixers (front panel)	Eight locking RJ45 connectors, powered; Compatible with A-16II, A320, and A360 Personal Mixers; 2-position switch (I/II) accommodates A-16II and A320 (I) and the bidirectional A360 Personal Mixer (II) * The I/II switches are not required on D800 v.2
A-Net In or A-Net Bridge In	Accepts Pro16 or Pro16e A-Net; one locking RJ45 connector
A-Net Out (rear panel)	Pro16e A-Net; one locking RJ45 connector, unpowered Supports system expansion and the A-16II, A320, and A360 Personal Mixers
A-Net Mixes Out	Pro16e A-Net; One locking RJ45 connector, unpowered; Provides up to 16 channels (8 stereo pairs) of Network Mix Back™ data from up to eight A360 Personal Mixers
Ethernet	One RJ45 connector; for iOS A360 Display support
LEDs	Power On (red); Sync (green)
USB	Used for firmware updates
A-Net Cables	Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits. Unshielded Cat-5e cable may be used on all rear panel connections
Output Voltage for Personal Mixers	24VDC, 0.5 amp Transmitted over the Cat-5e cable
Power Supply	Internal, universal switching type, IEC connector
Input Voltage	100-240VAC, 50-60Hz, 300W Fuse - 250VAC~ T4AL
Dimensions	19" (482.6 mm) wide x 14.25" (362 mm) deep; 2U, 3.5" (88.9 mm) high
Weight	12.0 lbs (5.44 kg)

• D800 Data Sheet
• View / Download
