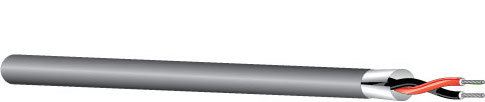

DA252401BK1000 | 1P 24G STRD SHLD PLEN

CONSTRUCTION & DIMENSIONS

-

CONDUCTOR PARAMETER

-

   • Number of Pairs

1

   • AWG Size

24

   • Conductor Stranding

7x32

   • Conductor Type

Tinned Copper

   • Nominal DCR

26 Ohm/1000ft

INSULATION PARAMETER

-

   • Insulation Type

Foam FEP

   • Insulation Thickness

0.022 in

   • Insulation Color Code

1. Black 2.Red

SHIELDING PARAMETER

-

   • Shield Type

Individually Shielded

   • Drain Wire Type

Tinned Copper

   • Drain Wire AWG

24 AWG

ELECTRICAL CHARACTERISTICS

-

   • Nominal Impedance

110 Ohm

   • Nom. Cap. Between Conductors

12 pF/ft

   • Nom. Cap. Conductor to Shield

22 pF/ft

OVERALL CONSTRUCTION PARAMETERS

-

Jacket Type

Flexible Plenum

Jacket Thickness

0.015 in

Nominal Cable O.D.

0.175 in

Plenum

Yes

NEC UL Rating

CMP

RoHS Compliant

Yes

TIA Test

AES/EBU

Pull Tension

17 lbs

Bend Radius

1.575 in

Cable Weight

14 lbs
