DB-CIJ3 | CONSUMER INPUT JACKS – MONO - BLACK
DB-CIJ3
CONSUMER INPUT JACKS – MONO - BLACK
DB-CIJ3
CONSUMER INPUT JACKS – MONO - BLACK
- UM : EA
- Estimated Weight: 1.0
The DB-CIJ3 is the ideal choice in installations requiring the passive mixing of two unbalanced line level audio sources to feed a mono balanced (or unbalanced) audio line.

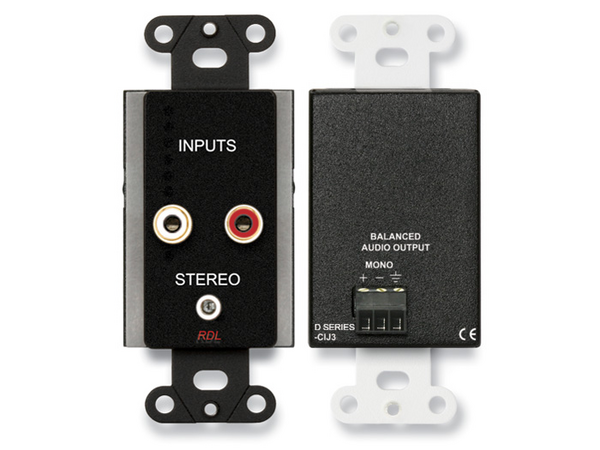

The DB-CIJ3 is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are combined and balanced through audio transformers configured to reject induced hum. A mono line-level output is provided on the rear-panel detachable terminal block for connection to a 10 kO or higher input impedance line-level module or equipment input.
Stereo Inputs to Mono Output
Stereo Inputs on RCA Jacks and Stereo Mini-Jack
Unbalanced to Balanced Conversion Without Gain
Transformer Isolation for Unbalanced Line Inputs
Hum Cancellation on Unbalanced Line Inputs
Line-Level Output to Feed 10 kO Equipment Inputs
Output Connections on Detachable Terminal Block
Mix Stereo Inputs to Mono Balanced
Available in RDL White/Gray (D-CIJ3)
Available in Stainless Steel (DS-CIJ3)
