DB-J1C | MICROPHONE INPUT ASSEMBLY - XLR, TERMINAL BLOCK - BLACK (CUSTOM LABELED) (SEE PART # ZCST-LBL FOR SE
DB-J1C
MICROPHONE INPUT ASSEMBLY - XLR, TERMINAL BLOCK - BLACK (CUSTOM LABELED) (SEE PART # ZCST-LBL FOR SE
DB-J1C
MICROPHONE INPUT ASSEMBLY - XLR, TERMINAL BLOCK - BLACK (CUSTOM LABELED) (SEE PART # ZCST-LBL FOR SE
- UM : EA

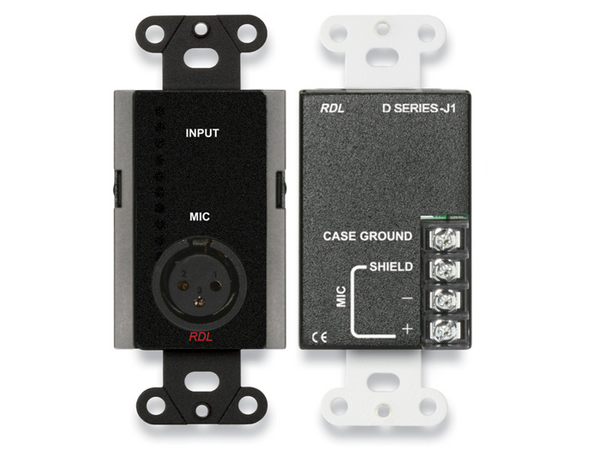

The D SERIES-J1 is a complete microphone input panel assembly. Connections to the female front‑panel XLR jack are made on a rear barrier block. Four terminals are provided: CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2) and - (XLR pin 3). The installer may install a jumper between the SHIELD connection and CASE GROUND if desired. The back of the D SERIES-J1 is finished with a metal enclosure clearly labeled for easy installation.
The D SERIES-J1 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.
Features:
- Wall Mounted Microphone Input Panel
- XLR Input Connector with Gold Contacts
- Barrier Block Wiring Connections
- Ground-Lift Terminals on Barrier Block
| Input Connector | XLR female gold contacts |
|---|---|
| Output Connector | Barrier block |
| Output Connections (4) | CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3) |
| Power Requirement | Passive |
| Dimensions | Height: 4.13 in. 10.49 cm Width: 1.7 in. 4.32 cm Depth: 2.15 in. 5.47 cm |
| Mounting Box Req. | Width: 1.80 in. 4.57 cm Depth: 1.75 in. 4.45 cm |
| Package Type | Cardboard Box |
| Tariff code | 8536.69.4030 |
| WEEE weight | 0.28 lbs. |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.43 lbs. |
