DB-RLC2C | REMOTE LEVEL CONTROLLER - RAMP - BLACK (CUSTOM LABELED) (SEE PART # ZCST-LBL FOR SETUP CHARGE)
DB-RLC2C
REMOTE LEVEL CONTROLLER - RAMP - BLACK (CUSTOM LABELED) (SEE PART # ZCST-LBL FOR SETUP CHARGE)
DB-RLC2C
REMOTE LEVEL CONTROLLER - RAMP - BLACK (CUSTOM LABELED) (SEE PART # ZCST-LBL FOR SETUP CHARGE)
- UM : EA

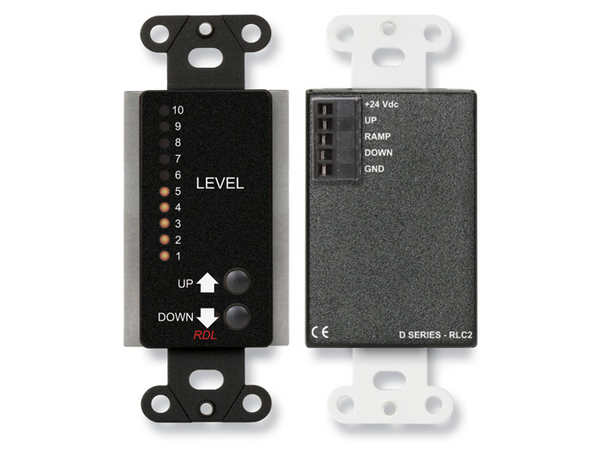

The DB-RLC2 is the ideal choice where levels are to be controlled from a single, or from multiple control locations, and visual level indication is desired.
The DB-RLC2 is designed to directly interface with RDL control modules, such as the STICK-ON series ST-RG1 Ramp Generator, or RACK-UP series RU-VCA2A Digitally Controlled Audio Attenuator. The DB-RLC2 has two momentary pushbuttons, UP and DOWN. Pushing each button sends the appropriate signal back to the RDL control module. When connected to the RU-VCA2A, pushing both buttons on the DB-RLC2 simultaneously causes the level to return to the PRESET level on the RU-VCA2A.
Features:
- Remote Level Control Panel
- Pushbutton UP and DOWN
- 10-segment Visual Level Display
- Multiple Control / Indication Locations
- Premium-Quality Remote Panel
- Professional Aesthetic Appearance
| Ramp Input | 0 to 10 Vdc |
|---|---|
| Outputs | UP and DOWN, pushbutton actuated 15 Vdc @ 5 mA |
| Connections | Detachable terminal block |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 75 mA |
| Mounting | Mounts in standard US electrical box, RDL WB- or SMB- series boxes cover plate available separately |
| Dimensions | Height: 4.11 in. (10.4 cm), Depth: 1.66 in. (4.21 cm), Width: 1.72 in. (4.37 cm) |
| Package Type | Cardboard Box |
| Tariff code | 8543.70.9860 |
| WEEE weight | 0.215 lbs. |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.36 lbs. |
