DB-RN12C | WALL-MOUNTED BI-DIRECTIONAL MIC/LINE DANTE INTERFACE 1 X 2 - BLACK (CUSTOM LABELED)

Please reference ZCST-LBL for setup charge.

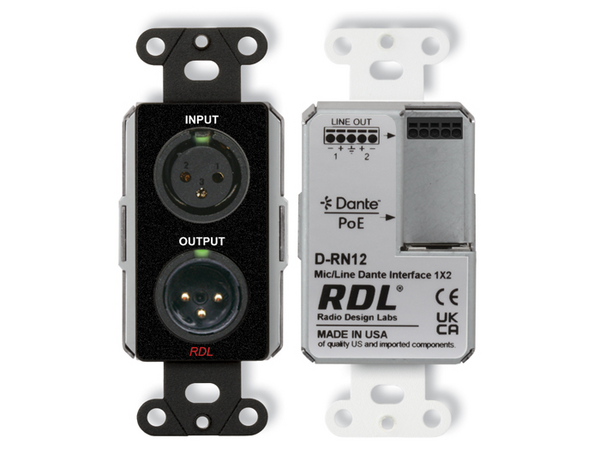

The D-RN12 is a complete wall-mounted Dante or AES67 audio network interface. It features one XLR mic or line input on the front panel, one balanced mic or line output on a front-panel XLR jack, and two balanced line outputs on a rear-panel detachable wiring block. One of the rear-panel wired outputs is the line-level signal from the front-panel XLR output. The other rear-panel wired output is a separate network audio channel. The module is configured and adjusted using RDL CONSOLE or other network control software. The D-RN12 fits a standard US single-gang electrical box or can be used with the RDL EP-1 adaptor for mounting in EU/UK square back boxes with 60 mm distance screw hole mounting centers. The D-RN12 is PoE powered and is available in multiple finishes with optional customized graphics

The XLR input is converted to a Dante or AES67 network transmit channel. Five gain settings are software-selectable for the XLR input. Three gain settings are provided to match condenser or dynamic microphones. Two gain settings are provided to match standard line levels. P48 phantom voltage may be software enabled when the input is set for mic level.

Two Dante or AES67 audio channels are converted to balanced line level. One channel feeds the front-panel XLR output jack and one of the two rear-panel outputs on a detachable wiring block. The other audio channel feeds the other output on the detachable wiring block. Each line output provides balanced +4 dBu for a network digital audio level of -18 dBFS. Each output is equipped with a software-controlled attenuator adjustable in 1 dB steps to a maximum attenuation of 63 dB, then OFF. The front-panel XLR output is also equipped with a software-controlled mic/line output attenuator pad. When that output is set to mic level, the step attenuator reduces the mic output in 1 dB steps to a maximum attenuation of 63 dB below mic level, then OFF. The rear-panel outputs may drive local power amplifiers or may feed additional XLR jacks mounted adjacent to the D-RN12 in a dual-gang box. Two XLR mic or line outputs may be provided using an RDL D-D2 equipped with two AMS-XLRMA jacks, available separately.

Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit.

The D-RN12 is a professional grade product with an RDL mic preamplifier for studio quality fidelity and low noise performance, with audio coupled through XLR jacks housed in a steel chassis mounted with a powder-coated or stainless-steel Decora front plate.

The D-RN12’s superior performance specifications make it ideally suited to installations requiring network control and exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A. for continuous duty in demanding installations.

Features:

• Single-Gang Dante or AES67 Network Interface for One Audio Input and Two Audio Outputs
• Front-Panel Mic/Line Input on Balanced XLR Jack
• Balanced Line Output on Front-Panel Mic/Line XLR and on Rear-Panel Detachable Wiring Block
• Additional Line Output on Rear-Panel Detachable Wiring Block
• Software-Selected Input Gain; Mic: 35 dB, 42 dB or 59 dB; Line: Unity or 12 dB
• P48 Mic Phantom Selected by Software for Mic Input
• Front-Panel XLR Output is Software-Selectable for Mic or Line Level
• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
• Compatible with RDL Network Remote Controls
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Studio Quality, Low-Noise Performance

TYPICAL PERFORMANCE
Network Connector	RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol	Dante
Transmission Rate	100 Mbps
Sample Rates Supported	44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Bit Depth Supported	24 bits
Audio Operating Level	-18 dBFS = +4 dBu
Reference Level	0 dBFS = +22 dBu
Mic/Line Input to Network Interface
Input	XLR (female)
Gain	: Mic: 35 dB (LOW), 42 dB (MED), 59 dB (HIGH) Line: Unity (NORM), 12 dB (HIGH)
Input Level (for +4 dBu/-18 dBFS)	Mic: -31 dBu (LOW), -38 dBu (MED), -55 dBu (HIGH) Line: +4 dBu (LOW), -8 dBu(HIGH)
Input Level (maximum)	Mic: -14 dBu (LOW), -21 dBu (MED), -38 dBu (HIGH) Line: +23 dBu (LOW), +10 dBu (HIGH)
Input Impedance	> 1.2 kΩ
Phantom Power	P48, software-selectable
Standard for Phantom	IEC 61938: 2013
Selectors per input (2)	Phantom, Gain, software-selectable
Frequency Response	20 Hz to 20 kHz (± 0.5 dB)
Equivalent Input Noise	< -128 dBu (59 dB gain) < -130 dBu A-Weighted
Noise below -18 dBFS (20 to 20 kHz)	Mic: < -88 dB (LOW), < -82 dB (MED), < -68 dB (HIGH) Line: < -88 dB (NORM),< -88 dB (HIGH)
THD+N	< 0.1% (20 Hz to 20 kHz, +4 dBu/-18 dBFS)
CMRR	> 65 dB (50 Hz to 120 Hz)
Crosstalk	: Below Noise Floor (20 Hz to 20 kHz at operating level, any input to any input, max. mic gain)
Network to Mic/Line Outputs
Outputs (2)	Balanced, XLR and detachable wiring block Balanced, detachable wiring block
Output Level (operating)	+4 dBu (nominal) balanced
Output Level (maximum)	+22 dBu balanced
Output Attenuator	Software-controlled, 0 to -63 dB and OFF (analog output per received networkchannel)
Output Impedance	150 Ω balanced
Frequency Response	Mic: 20 Hz to 20 kHz (± 0.5 dB) Line: 20 Hz to 20 kHz (± 0.5 dB)
THD+N	< 0.1%
THD	: < 0.01% (1 kHz)
Noise	< -80 dB (below +4 dBu) < -100 dB (below +22 dBu)
Crosstalk	Below Noise Floor (20 Hz to 20 kHz at operating level, output to output)
Headroom above +4 dBu	> 18 dB
Indicators (4)	Ethernet Link and Speed (2, rear panel) Sync and Power (2, front panel)
Ambient Operating Environment	0° C to 50° C
Power Requirement	: PoE Class 0, IEEE 802.3af
Specification Conditions	Gain/Level: ± 1 dB Source termination: 150 Ω A to D values measured in digitaldomain
Dimensions	1.80” (4.57 cm) W 4.11” (10.44 cm) H 2.09” (5.31 cm) D
Package Type	Cardboard Box
Package Dimensions	2.75” (6.99 cm) x6.7” (17.02 cm) x6.25” (15.88 cm)
Shipping Weight	0.695 lbs. (0.315 kg)
WEEE weight	0.435 lbs. (0.197 kg)
US Tariff Code	8543.70.9100
EU Tariff Code	: 8543.70.0600
