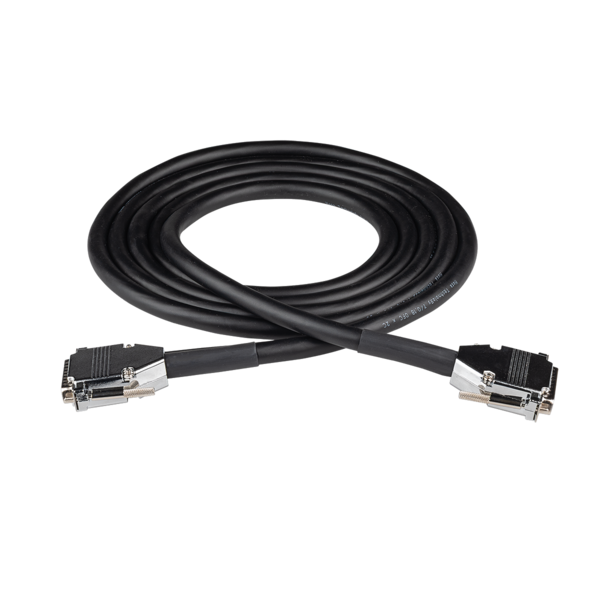

DBD-501 | EDGE 8-CHANNEL ANALOG SNAKE DB25 TO SAME, 1M

DBD-501 is an 8-channel analog audio snake designed for professional audio connectivity. It features 24 AWG (0.18 mm²) oxygen-free copper (OFC) conductors with XLPE (cross-linked polyethylene) insulation to provide low capacitance and thermal stability. Each channel is individually shielded with a 58-strand spiral shield to reduce radio frequency interference (RFI) and electromagnetic interference (EMI). The cable assemblies include die-cast metal DB25 connector hoods for enhanced physical protection and EMI shielding.

The DBD-501 is wired to the Tascam D-Sub standard, ensuring compatibility with interfaces from Digidesign, RME, Yamaha, and other manufacturers using standard DB25 analog connectors. Breakout models incorporate Neutrik XX-Series XLR connectors featuring black metal housings with gold contacts. This product is designed for signal integrity and reliable analog audio transfer in professional studio and live sound environments.

Features:

• XLPE insulation for low capacitance and thermal stability
• 24 AWG Oxygen-Free Copper (OFC) conductors
• 58-strand spiral shield for RFI/EMI rejection
• Die-cast metal DB25 connector housing for EMI shielding
• Individual 58-strand spiral shields on all 8 channels
• Genuine Neutrik® XX-Series XLR connectors with gold contacts
• Wired to Tascam D-Sub Standard for 8-channel analog audio
• Compatible with Digidesign, RME, Yamaha, and standard DB25 interfaces
• 8-channel analog configuration
• Oxygen-Free Copper conductor material
• Spiral Shield (58/0.10 mm) shielding
• XLPE dielectric insulation
• Analog Tascam Standard pinout
• Die-cast metal DB25 connector hoods
• Robust DB25 housing for physical protection
