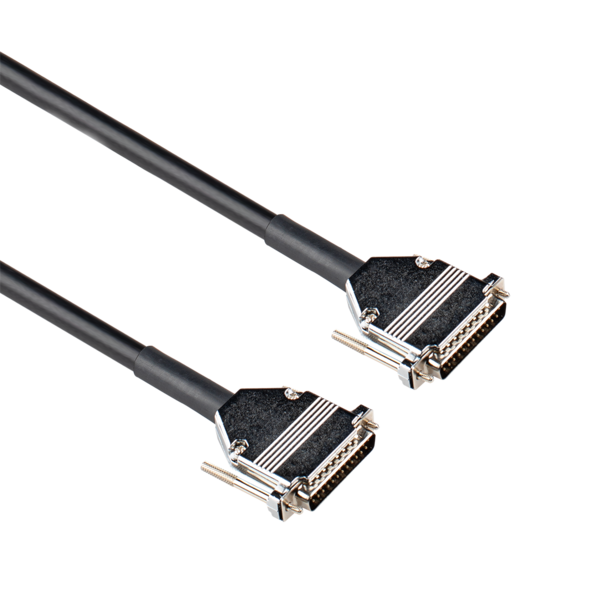

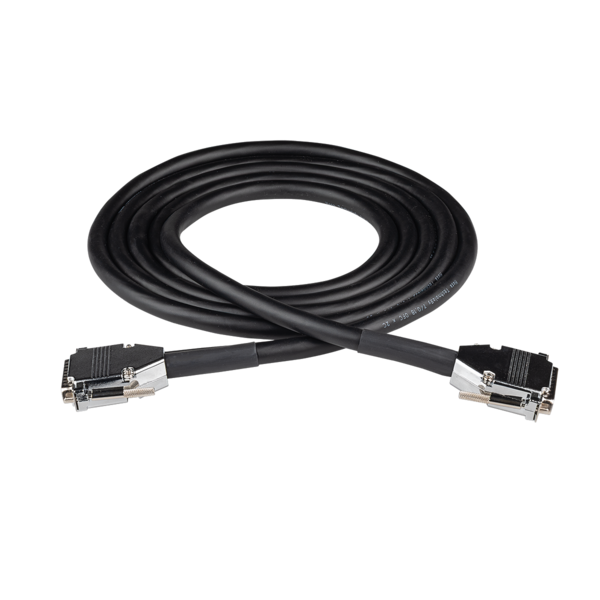

DBD-502 | EDGE 8-CHANNEL ANALOG SNAKE DB25 TO SAME, 2M

DBD-502 is an 8-channel analog audio snake designed for professional audio applications requiring precise signal integrity. It features 24 AWG (0.18 mm²) oxygen-free copper (OFC) conductors combined with XLPE (cross-linked polyethylene) insulation to provide low capacitance and thermal stability. Each channel is individually shielded with a 58-strand spiral shield for effective electromagnetic and radio frequency interference (EMI/RFI) rejection. The cable terminates in die-cast metal DB25 hoods that offer mechanical durability and enhanced EMI protection.

The DBD-502 adheres to the Analog Tascam D-Sub standard pinout, ensuring compatibility with interfaces from Digidesign, RME, Yamaha, and other manufacturers using the DB25 format. Breakout models utilize Neutrik XX-series XLR connectors with black metal housings and gold contacts, engineered for high mating cycle durability. This configuration supports integration into studio consoles, patch bays, and audio interface expansions requiring balanced analog audio transmission.

Features:

• XLPE insulation with low capacitance and thermal stability
• 24 AWG Oxygen-Free Copper (OFC) conductors
• 58-strand spiral shield for RFI/EMI rejection
• Die-cast metal DB25 housings for EMI shielding and protection
• 8-channel analog audio support
• Compatible with Tascam D-Sub Standard (Avid, RME, UA compatible)
• Genuine Neutrik XX-Series XLR connectors (black metal housing, gold contacts)
• Multi-channel individually shielded cables
• Optimized conductor gauge for signal clarity
• High-density shielding with spiral shields on all channels
• Oxygen-Free Copper conductor material
• Analog Tascam Standard pinout
• Robust connector housings
• Universal compatibility with common audio interfaces
• Industry benchmark material science and construction
