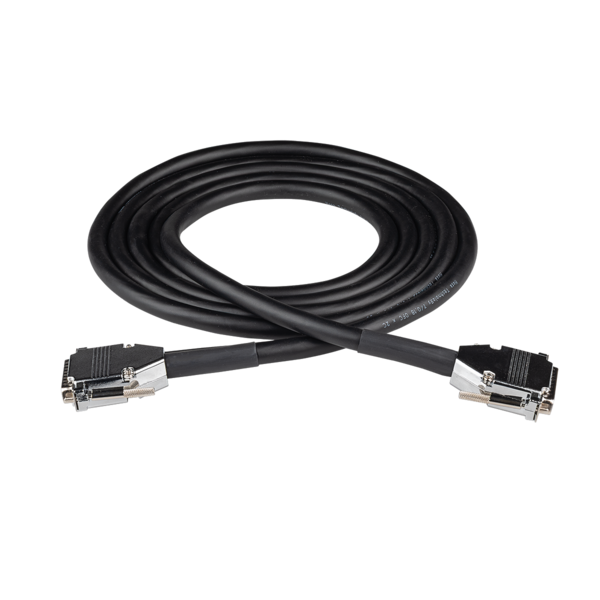

DBD-504 | EDGE 8-CHANNEL ANALOG SNAKE DB25 TO SAME, 4M

DBD-504 is an 8-channel analog audio snake featuring oxygen-free copper (OFC) 24 AWG (0.18 mm²) conductors insulated with cross-linked polyethylene (XLPE) for low capacitance and thermal stability. Each channel is individually protected by a 58-strand spiral shield designed to provide effective rejection of radio frequency interference (RFI) and electromagnetic interference (EMI).

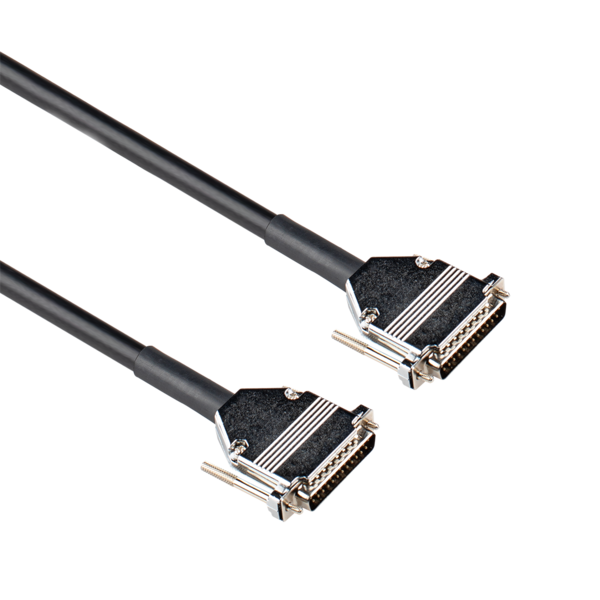

The cable terminates in die-cast metal DB25 hoods that comply with the Tascam D-Sub standard, compatible with equipment from Digidesign, RME, Yamaha, and other standard DB25 interfaces. Breakout models use genuine Neutrik® XX-Series XLR connectors with black metal housings and gold contacts. This configuration supports reliable signal transfer with physical and EMI protection appropriate for professional studio environments.

Features:

• XLPE insulation for low capacitance and thermal stability
• 24 AWG Oxygen-Free Copper (OFC) conductors
• 58-strand spiral shield for RFI/EMI rejection
• Die-cast metal DB25 housing for EMI shielding and protection
• 8-channel analog signal support
• Genuine Neutrik® XX-Series XLR connectors with gold contacts
• Universal compatibility with Tascam D-Sub standard
• High-density shielding on all 8 channels
• Analog Tascam Standard pinout (Avid/RME/UA compatible)
• Oxygen-Free Copper conductor material
• Spiral shield with 58 strands of 0.10 mm wire
• Robust physical protection
• Precision-engineered cable for ultra-low noise floor
• Consistent thermal stability from XLPE dielectric
• Optimized conductor gauge for maximum signal clarity
