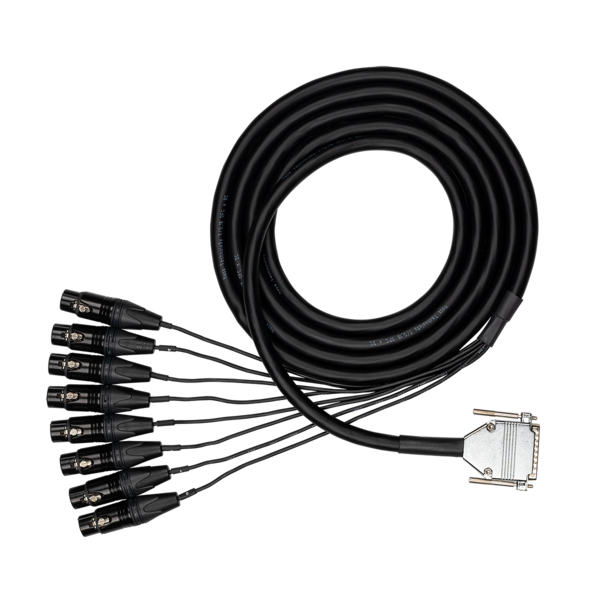

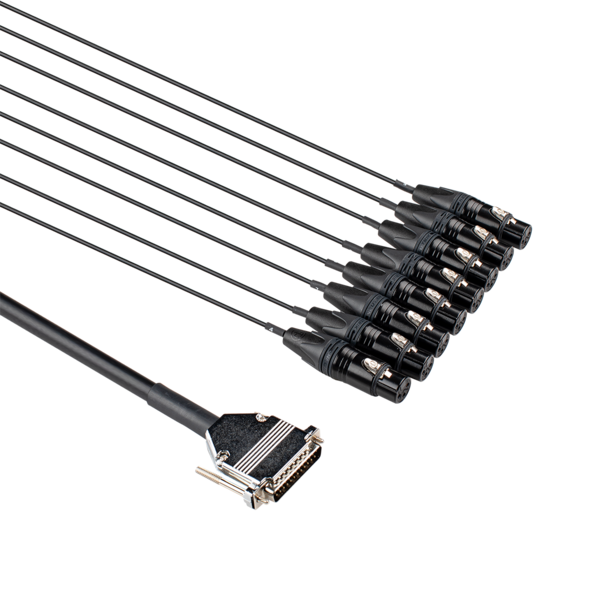

DBF-501 | EDGE 8-CHANNEL ANALOG SNAKE DB25 TO XLR3F, 1M

DBF-501 is an 8-channel analog audio snake cable designed for professional audio applications. It features 24 AWG (0.18 mm²) oxygen-free copper conductors with XLPE (cross-linked polyethylene) insulation to provide low capacitance and thermal stability. Each of the eight channels is individually shielded with a 58-strand spiral shield to minimize RFI and EMI interference. The cable is wired to the Tascam D-Sub standard, ensuring compatibility with studios using Digidesign, RME, Yamaha, and similar DB25 interfaces.

The DBF-501 utilizes genuine Neutrik XX-Series female XLR connectors with black metal housings and gold contacts for durability and reliable contact integrity. The DB25 connectors have robust die-cast metal hoods offering enhanced EMI shielding and mechanical protection. This cable assembly is engineered to maintain signal integrity in critical audio environments by combining premium materials and industry-standard specifications.

Features:

• XLPE insulation for low capacitance and thermal stability
• 24 AWG Oxygen-Free Copper conductors
• 58-strand spiral shield for RFI/EMI rejection
• Neutrik® XX-Series XLR Female connectors with gold contacts
• Die-cast metal DB25 housing for EMI shielding and protection
• 8 channels of analog audio
• Wired to Tascam D-Sub standard
• Universal compatibility with Digidesign, RME, Yamaha, and standard DB25 interfaces
• Oxygen-Free Copper conductor material
• Spiral shield shielding
• Cross-linked Polyethylene (XLPE) dielectric
• Analog Tascam pinout standard
• Die-cast metal DB25 to Neutrik® XLR Female connectors
• High signal clarity
• Ultra-low noise floor
