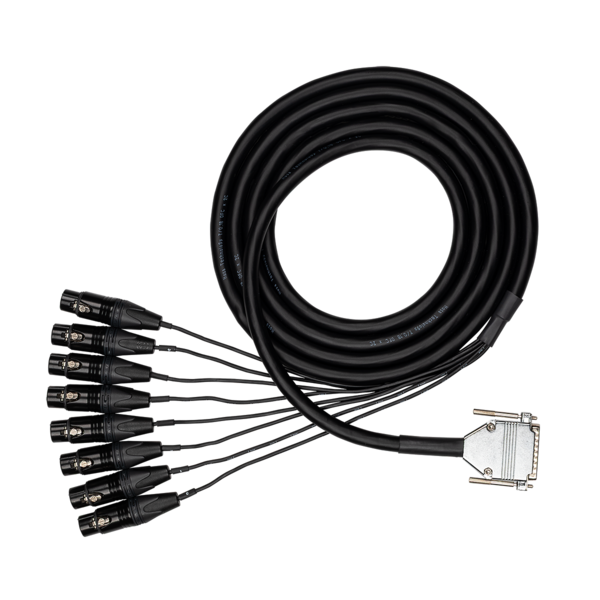

DBF-502 | EDGE 8-CHANNEL ANALOG SNAKE DB25 TO XLR3F, 2M

DBF-502 is an 8-channel analog audio snake cable designed for professional audio applications. It features 24 AWG (0.18 mm²) oxygen-free copper (OFC) conductors with XLPE (cross-linked polyethylene) insulation, providing low capacitance and thermal stability. Each of the eight channels includes a 58-strand spiral shield for radio frequency interference (RFI) and electromagnetic interference (EMI) rejection. The cable is wired to the Tascam D-Sub standard, ensuring compatibility with interfaces from Digidesign, RME, Yamaha, and similar equipment.

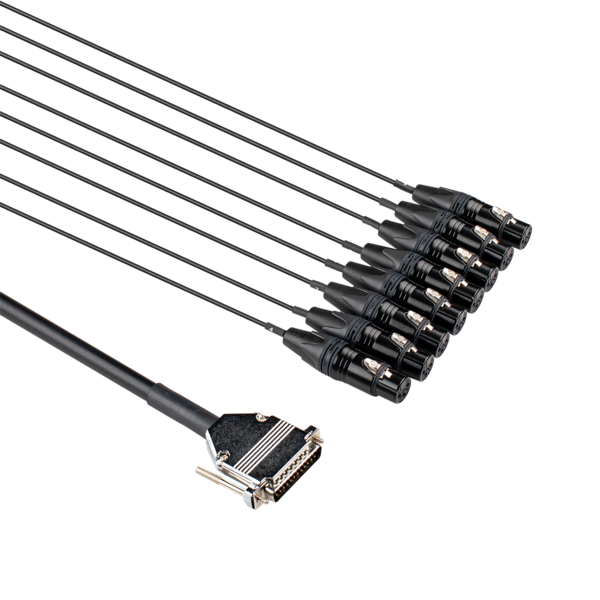

The DBF-502 terminates with a die-cast metal DB25 connector on one end and genuine Neutrik XX-Series XLR Female connectors with black metal housings and gold contacts on the other end. The robust connectors and housing offer enhanced durability and EMI shielding. The cable assembly supports uncolored signal transmission suitable for critical audio environments requiring balanced analog connectivity across eight channels.

Features:

• XLPE insulation for low capacitance and thermal stability
• 24 AWG Oxygen-Free Copper (OFC) conductors
• 58-strand spiral shield for effective RFI/EMI rejection
• Neutrik® XX-Series XLR Female connectors with gold contacts
• Die-cast metal DB25 housing for EMI shielding and protection
• 8 channels of analog audio support
• Wired to Tascam D-Sub standard
• Universal compatibility with Digidesign, RME, Yamaha, etc.
• 24 AWG (0.18 mm²) conductor gauge for signal clarity
• Individual spiral shields on all 8 channels
• Oxygen-Free Copper conductor material
• Spiral shield specification: 58 strands of 0.10 mm
• Analog Tascam standard pinout
• Connectors: Die-cast metal DB25 to Neutrik® XLR Female
• Compatible with standard DB25 interfaces
