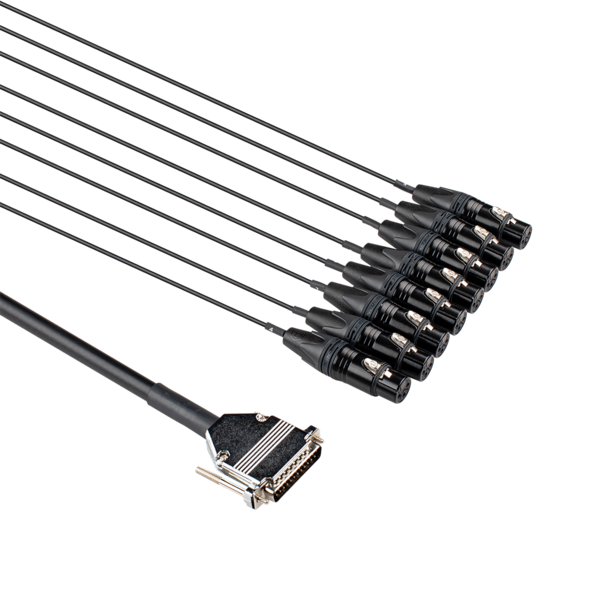

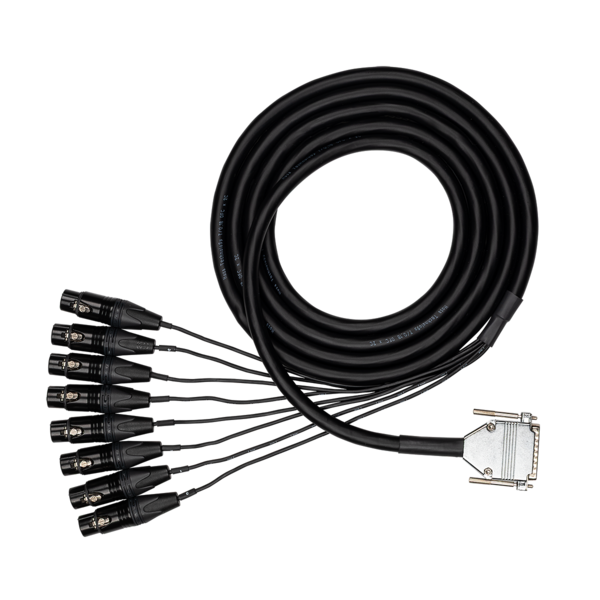

DBF-503 | EDGE 8-CHANNEL ANALOG SNAKE DB25 TO XLR3F, 3M

DBF-503 is an 8-channel analog audio snake cable designed for professional audio connectivity. It features 24 AWG (0.18 mm²) oxygen-free copper conductors with XLPE (cross-linked polyethylene) insulation for low capacitance and thermal stability. Each channel is individually shielded with a 58-strand spiral shield to provide effective RFI/EMI rejection and maintain a low noise floor. The cable is wired to the Tascam D-Sub standard, ensuring compatibility with devices from Digidesign, RME, Yamaha, and other manufacturers supporting standard DB25 analog audio interfaces.

The DBF-503 includes die-cast metal DB25 connectors and genuine Neutrik XX-Series XLR female connectors with black metal housing and gold contacts. These connectors provide durability and reliable contact integrity. The rugged construction supports signal integrity and protection in professional studio and live sound environments.

Features:

• XLPE insulation for low capacitance and thermal stability
• 24 AWG Oxygen-Free Copper (OFC) conductors
• 58-strand spiral shield for RFI/EMI rejection
• Neutrik® XX-Series XLR Female connectors with gold contacts
• Die-cast metal DB25 connector housing for EMI shielding
• 8-channel analog audio support
• Compatible with Tascam D-Sub Standard
• Supports Digidesign, RME, Yamaha, and standard DB25 interfaces
• High-density shielding on all 8 channels
• Oxygen-Free Copper conductor material
• Spiral shield with 58 strands of 0.10 mm wire
• Analog Tascam standard pinout (Avid/RME/UA compatible)
• Robust physical connector protection
• Maximum signal clarity with optimized conductor gauge
• Industry benchmark for solderability and transient response
