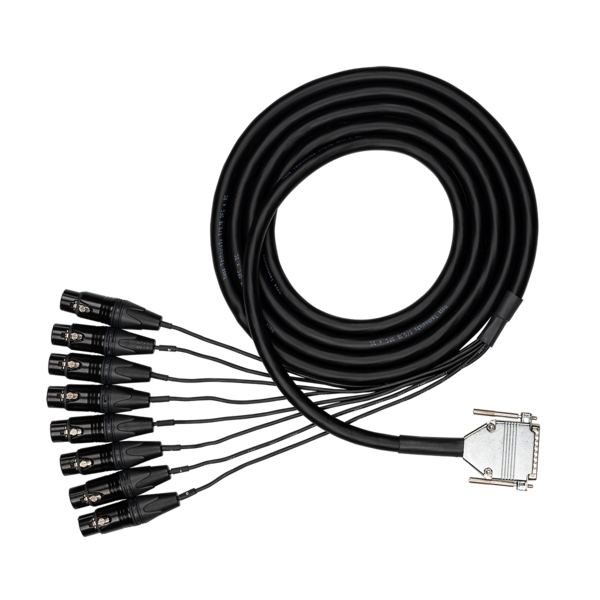

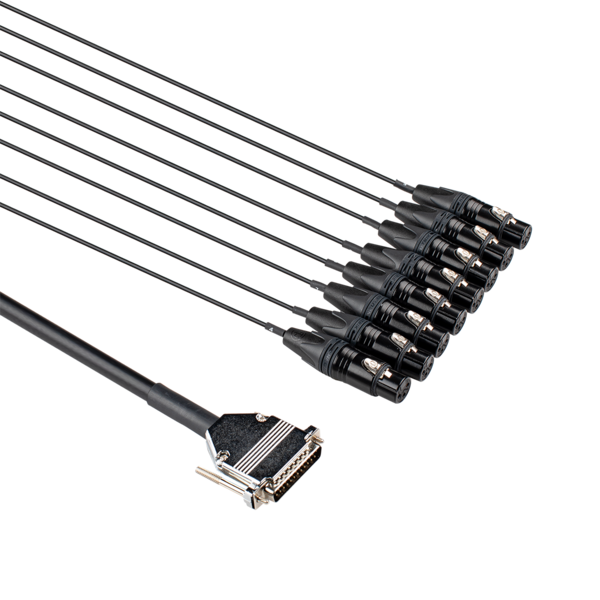

DBF-504 | EDGE 8-CHANNEL ANALOG SNAKE DB25 TO XLR3F, 4M

DBF-504 is an 8-channel analog audio snake cable designed for professional audio applications requiring balanced signal transmission. The cable features 24 AWG (0.18 mm²) oxygen-free copper (OFC) conductors with XLPE (cross-linked polyethylene) insulation, providing low capacitance and thermal stability. Each of the eight channels is individually shielded by a 58-strand spiral shield to minimize radio frequency interference (RFI) and electromagnetic interference (EMI).

The cable terminates in die-cast metal DB25 connectors on one end and genuine Neutrik XX-Series XLR female connectors on the other, supporting the Tascam D-Sub standard pinout compatible with equipment from Avid, RME, Yamaha, and others. The DB25 metal hoods offer robust EMI shielding and physical protection, while the Neutrik® connectors feature black metal housings and gold contacts for durability and contact integrity.

Features:

• XLPE insulation for low capacitance and thermal stability
• 24 AWG Oxygen-Free Copper (OFC) conductors
• 58-strand spiral shield for effective RFI/EMI rejection
• Neutrik® XX-Series XLR Female connectors with gold contacts
• Die-cast metal DB25 housing for EMI shielding and protection
• 8 channels of analog audio support
• Wired to Tascam D-Sub Standard for compatibility
• Oxygen-Free Copper conductor material
• Spiral Shielding with 58 strands per channel
• Analog Tascam Standard pinout compatible with Avid/RME/UA
• DB25 to Neutrik® XLR Female connectors
• Low noise floor design
• Robust connector durability
• Cross-Linked Polyethylene dielectric
• Optimized conductor gauge of 24 AWG
