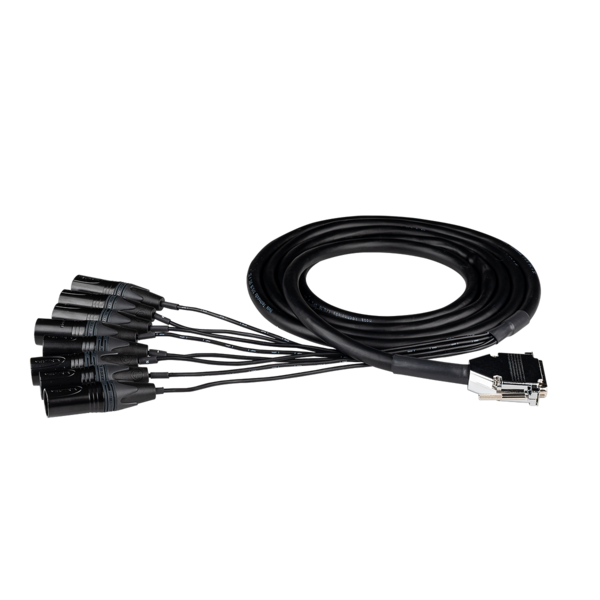

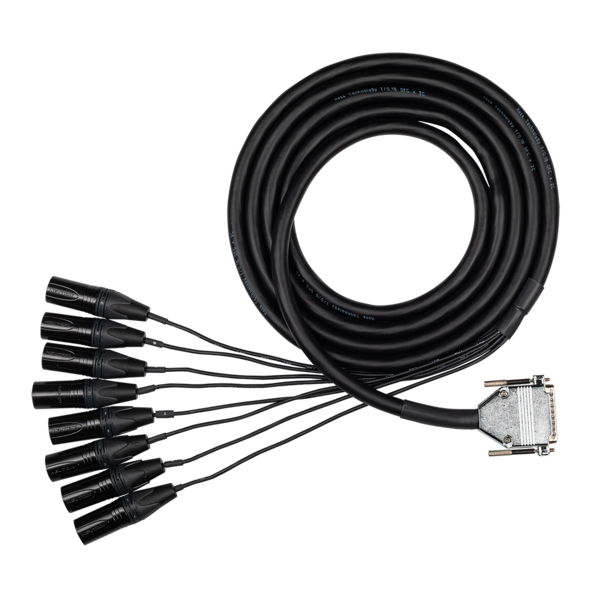

DBM-501 | EDGE 8-CHANNEL ANALOG SNAKE DB25 TO XLR3M, 1M

DBM-501 is an 8-channel analog audio snake designed for professional audio signal routing. It features 24 AWG (0.18 mm²) oxygen-free copper (OFC) conductors insulated with cross-linked polyethylene (XLPE) for low capacitance and thermal stability. Each channel is individually shielded with a 58-strand spiral shield to provide electromagnetic and radio-frequency interference rejection.

The cable terminates in a die-cast metal DB25 connector wired to the Tascam D-Sub standard, compatible with Digidesign, RME, Yamaha, and other common DB25 interfaces. The opposite end has genuine Neutrik® XX-Series XLR male connectors with black metal housing and gold contacts, designed for durability and reliable contact integrity.

Features:

• XLPE insulation for low capacitance and thermal stability
• 24 AWG Oxygen-Free Copper (OFC) conductors
• 58-strand spiral shield for RFI/EMI rejection
• Neutrik® XX-Series XLR Male connectors with gold contacts
• Die-cast metal DB25 housing for EMI shielding and protection
• 8 channels wired to Tascam D-Sub standard
• Ultra-low noise floor with individual shielding on all channels
• Compatibility with Digidesign, RME, Yamaha standard DB25 interfaces
• Robust and durable connector construction
• Optimized conductor gauge for maximum signal clarity
• Spiral shielding (58 strands of 0.10 mm)
• Analog Tascam standard pinout
• Cross-linked polyethylene dielectric
• Gold contact connectors with high mating cycle durability
• High-density shielding on all channels
