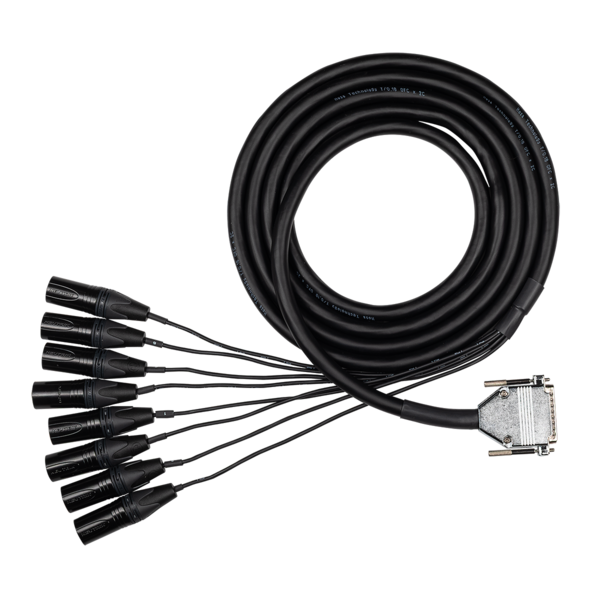

DBM-502 | EDGE 8-CHANNEL ANALOG SNAKE DB25 TO XLR3M, 2M

DBM-502 is an 8-channel analog audio snake cable from the Hosa Edge series. It features 24 AWG (0.18 mm²) oxygen-free copper conductors insulated with cross-linked polyethylene (XLPE) for low capacitance and thermal stability. Each channel is individually shielded with a 58-strand spiral shield designed to minimize radio frequency interference and electromagnetic interference.

The cable terminates in a die-cast metal DB25 connector compliant with the Tascam D-Sub standard and eight Neutrik® XX-Series male XLR connectors with black metal housings and gold contacts. This configuration supports universal compatibility with audio equipment from Digidesign, RME, Yamaha, and other manufacturers using the standard analog DB25 interface.

Features:

• XLPE insulation for low capacitance and thermal stability
• 24 AWG Oxygen-Free Copper conductors
• 58-strand spiral shield for RFI/EMI rejection
• Neutrik® XX-Series XLR Male connectors with gold contacts
• Die-cast metal DB25 housing for EMI shielding and protection
• 8-channel analog audio support
• Wired to Tascam D-Sub Standard
• Compatible with Digidesign, RME, Yamaha standard DB25 interfaces
• 58-strand spiral shield on all 8 channels
• Oxygen-Free Copper conductor material
• Analog Tascam Standard pinout (Avid/RME/UA compatible)
• Robust connector durability and contact integrity
• Optimized conductor gauge for signal clarity
• Consistent thermal stability of insulation
• Universal compatibility across major audio brands
