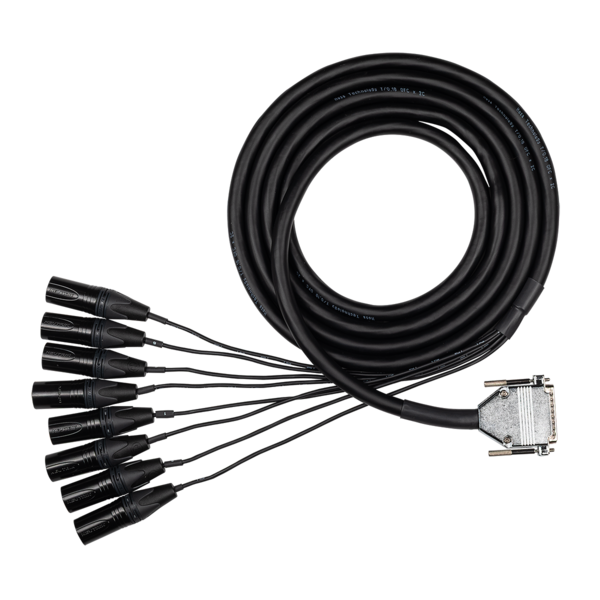

DBM-503 | EDGE 8-CHANNEL ANALOG SNAKE DB25 TO XLR3M, 3M

DBM-503 is an 8-channel analog audio snake designed for professional audio applications requiring precise signal specifications. It features 24 AWG (0.18 mm²) oxygen-free copper (OFC) conductors with XLPE (cross-linked polyethylene) insulation for low capacitance and thermal stability. Each channel is individually shielded with a 58-strand spiral shield to provide effective rejection of radio frequency interference (RFI) and electromagnetic interference (EMI). The cable is wired to the Tascam D-Sub standard, ensuring compatibility with devices from Digidesign, RME, Yamaha, and other equipment utilizing standard DB25 interfaces.

The product is equipped with genuine Neutrik® XX-Series XLR Male connectors featuring black metal housings and gold contacts for durability and reliable contact integrity. The DB25 connector is housed in a die-cast metal hood, which offers physical protection and superior EMI shielding. The combination of premium materials and industry-standard wiring supports uncolored signal transfer, suitable for summing mixers, powered monitors, and consoles in critical audio environments.

Features:

• XLPE insulation with low capacitance and thermal stability
• 24 AWG Oxygen-Free Copper (OFC) conductors
• 58-strand spiral shield for RFI/EMI rejection
• Neutrik® XX-Series XLR Male connectors with gold contacts
• Die-cast metal DB25 housing for EMI shielding and protection
• 8 channels analog audio support
• Wired to Tascam D-Sub Standard compatibility
• Oxygen-Free Copper conductor material
• Spiral 58-strand shielding per channel
• Compatible with Digidesign, RME, Yamaha DB25 interfaces
• Analog Tascam Standard pinout
• Metal Black housing connectors
• High signal clarity with optimized conductor gauge
• Robust connector construction for durability
• Universal DB25 to XLR Male connector cable
