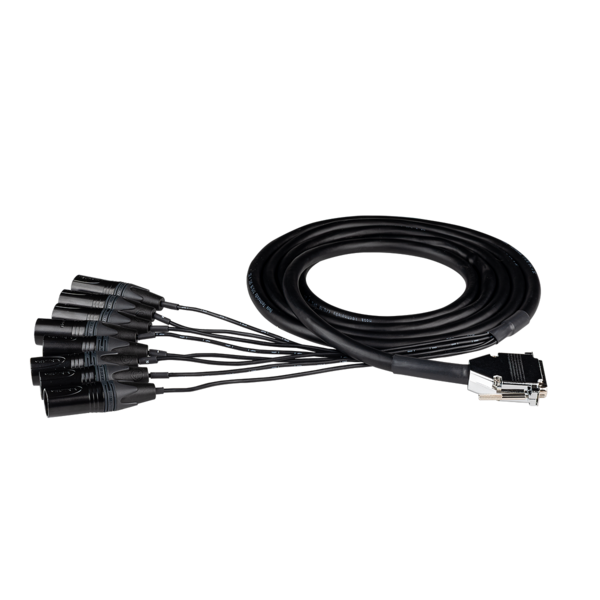

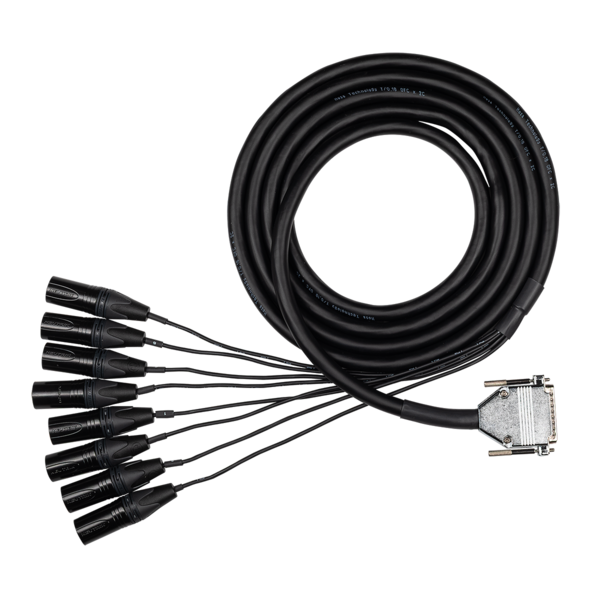

DBM-504 | EDGE 8-CHANNEL ANALOG SNAKE DB25 TO XLR3M, 4M

DBM-504 is an 8-channel analog audio snake cable from the Hosa Edge series, designed for professional audio applications requiring precise signal transmission. It features 24 AWG (0.18 mm²) oxygen-free copper (OFC) conductors and XLPE (cross-linked polyethylene) insulation, which offers low capacitance and thermal stability. Each channel is individually shielded with a 58-strand spiral shield to reduce electromagnetic and radio frequency interference.

Connectivity is provided via a die-cast metal DB25 connector housing on one end and genuine Neutrik® XX-Series XLR Male connectors (black metal housing with gold contacts) on the other. The cable is wired to the Tascam D-Sub standard, ensuring compatibility with standard 8-channel analog audio interfaces such as those from Digidesign, RME, and Yamaha. The construction includes robust shielding for EMI protection and maintains consistent signal integrity across all channels.

Features:

• XLPE insulation for low capacitance and thermal stability
• 24 AWG Oxygen-Free Copper (OFC) conductors
• 58-strand spiral shield for RFI/EMI rejection
• Neutrik® XX-Series XLR Male connectors with gold contacts
• Die-cast metal DB25 housing for EMI shielding and protection
• 8 channels of analog audio support
• Wired to Tascam D-Sub Standard for compatibility
• High-density shielding on all channels
• Studio-standard dielectric materials
• Oxygen-Free Copper conductor material
• Spiral shielding with 58 strands of 0.10 mm wire
• Analog Tascam Standard pinout compatible with Avid/RME/UA
• Robust connector durability and contact integrity
• Optimized conductor gauge for signal clarity
• Universal compatibility with common DB25 interfaces
