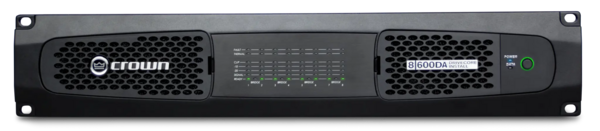

DCI8X600DA | 8 CHANNEL POWER AMPLIFIER 600W @ 4OHM, 70V 100V, DANTE
DCI8X600DA
8 CHANNEL POWER AMPLIFIER 600W @ 4OHM, 70V 100V, DANTE
DCI8X600DA
8 CHANNEL POWER AMPLIFIER 600W @ 4OHM, 70V 100V, DANTE
- UM : EA
For applications that require Dante or AES67 networked audio, the Crown DriveCore Install DA Series provides a balanced combination of output power, channel count and speaker load flexibility along with proprietary DriveCore technology for superb efficiency and exemplary audio quality. The DCi DA Series includes a high-powered DSP with JBL speaker tunings, network control/monitoring, and the ability to drive 2/4/8/16 ohm, 70V and 100V speaker loads. The amp’s advanced capabilities and support for Dante Domain Manager makes it perfect for installations that have standardized on Dante for networked audio transport. This amplifier is EN 54-16 Compliant for life safety applications.
| Output channels | 8 |
|---|---|
| Frequency response (8ω, 20hz - 20khz) | ±0.25dB |
| Total harmonic distortion (at full rated power, 20hz - 20khz) | 0.35% |
| Damping factor (20hz to 100hz) | >1000 |
| Load impedance (stereo/dual mode) | 2Ω - 16Ω 70Vrms and 100Vrms |
| Load impedance bridge mono | 4Ω - 16Ω 140Vrms and 200Vrms |
| Cooling | Continuously variable speed forced air, front to back airflow |
| Maximum fan noise (re dba spl @ 1m) | 47 |
| Required ac mains (±10%) | 100V-240V ~ 50/60Hz |
| Power connector | 20A IEC |
