DFIN-IPXDISTRO4 | 4CH WIRELESS MICROPHONE ANTENNA DISTRIBUTION KIT W/ IP44 DIVERSITY FIN IPX ANTENNA & CABLES / BLACK

DFIN-IPXDISTRO4
4CH WIRELESS MICROPHONE ANTENNA DISTRIBUTION KIT W/ IP44 DIVERSITY FIN IPX ANTENNA & CABLES / BLACK

4 Channel Wireless Microphone Upgrade Pack with Diversity Fin IPX Antenna

RF Venue DFIN-IPXDISTRO4 is a four-channel wireless microphone antenna distribution package for any brand UHF wireless combining a black Diversity Fin IPX antenna, DISTRO4 antenna distribution system, and low-loss connecting cables. It provides a practical antenna upgrade for portable production systems, touring racks, houses of worship, and outdoor events. Wireless microphones and receivers are purchased separately.

The Diversity Fin IPX combines horizontal and vertical polarization reception in one antenna assembly, replacing two conventional paddle antennas with a single mounting location. Its rugged IP44-rated enclosure and downward-facing BNC connections provide weather resistance, while the cross-polarized design helps reduce multipath-related dropouts as performers move or change transmitter orientation.

The DISTRO4 shares the antenna’s A/B signals across four compatible receivers and provides DC power connections for compatible receiver models. Its cascade outputs can feed another distribution unit or a fifth receiver using a separate receiver power supply. The package includes two 25' antenna cables, receiver interconnects, spare dipoles, and mounting accessories.

KEY FEATURES

• Turnkey RF Management: Provides everything needed to support up to four wireless receivers from a single antenna position.

• IP44-Rated Protection: The Diversity Fin IPX features a weather-resistant seal and downward-facing BNC connectors, built to survive rain and dust.

• Patented Cross-Polarization: Combines LPDA and dipole elements to capture both vertical and horizontal signals, effectively eliminating multi-path dropouts.

• Reduced Rack Clutter: Replaces 8 individual whip antennas and multiple power adapters with one streamlined, professional system.

• Expansion Ready: Using dedicated RF cascade ports, any pair of RF outputs to the RF inputs of a second DISTRO4

• High-Quality Signal Path: Includes two 25-foot RG8X coaxial cables to ensure low-loss signal transfer between the antenna and your rack.

WHY CHOOSE THIS BUNDLE?

The Diversity Fin IPX Bundle is designed to solve the two biggest headaches in wireless audio: signal dropouts and cable chaos.

The IPX antenna is uniquely forgiving of transmitter orientation— the cross-polarized design maintains a constant lock on the signal regardless of a performer’s position on stage. Inside the rack, the combination of the DISTRO4 and the OCTO Cable transforms a "rat's nest" of wiring into a clean, reliable power and signal hub, allowing you to focus on the performance rather than the gear.

BUNDLE COMPONENTS & SPECIFICATIONS

• Diversity Fin IPX Antenna: 470–928 MHz, IP44 Rated, Cross-Polarized
• DISTRO4 Antenna Distribution System: 4-Way RF Splitter with High-Quality Internal Power Supply
• RG8X Coaxial Cables: (2) 25-foot low-loss cables with BNC connectors
• System Impedance: 50 Ohm
• Mounting: 5/8”-27 Threaded Mount (EU adapter included)

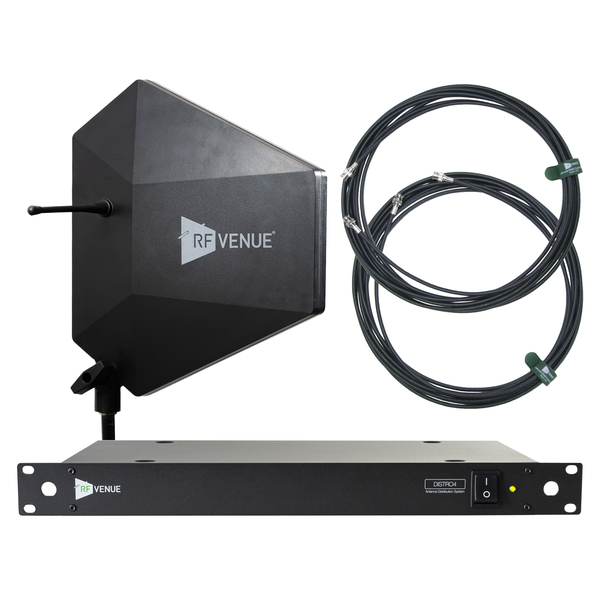

IN THE BOX

• (1) Diversity Fin IPX Antenna
• (1) DISTRO4 Antenna Distribution System
• (2) RG8X 25-foot Coaxial Cables (Black)
• (2) Spare Dipole Antennas for IPX
• (1) Dipole Storage Case
• (1) Threaded EU Microphone Stand Adapter

PRO TIP: This bundle is the ideal for touring and permanent outdoor installation. If your project involves an indoor wallmount installation where aesthetics are the priority, check out the RF Venue Diversity Architectural Antenna DISTRO4 Bundle.
