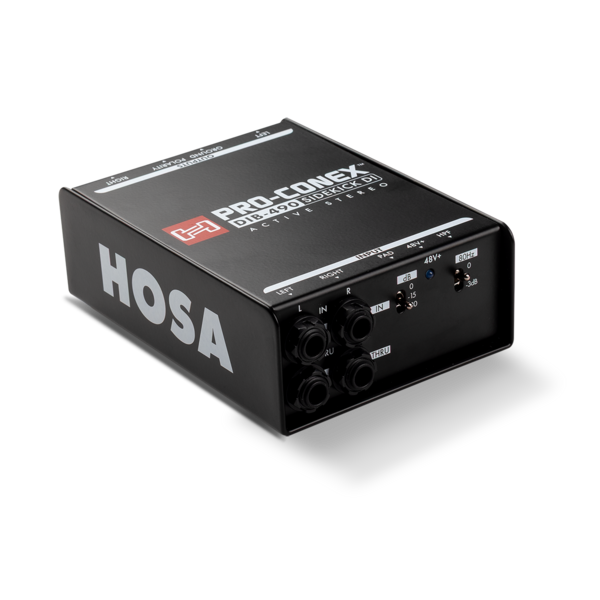

DIB-490 | PRO-CONEX SIDEKICK ACTIVE STEREO DIRECT BOX, 1/4 IN TS TO 1/4 IN TRS AND XLR3M

The DIB-490 is a dual-channel active direct box from the Hosa Pro-Conex Sidekick series, designed for stereo or dual mono signal management. It features transformerless active circuitry powered by 48V phantom power and provides two unbalanced 1/4" TS inputs with corresponding balanced XLR outputs. The unit includes two 1/4" TS thru outputs for signal passthrough. Input attenuation is selectable across three levels: 0dB, -15dB, and -30dB. Additional controls include Ground Lift and Polarity Reverse switches to address ground loop hum and phase issues.

This direct box is optimized for high-impedance sources such as stereo keyboards, synthesizers, drum machines, and dual mono instruments. It maintains high input impedance to preserve signal integrity and supports high-headroom operation to accommodate a range of output levels. The compact chassis facilitates stereo operation or two separate mono signals while providing essential signal conditioning functions suitable for stage and studio environments.

Features:

• Dual-channel design for stereo or dual mono input
• Powered by 48V Phantom Power (no batteries required)
• Three-position input pad switch (0dB, -15dB, -30dB)
• Two 1/4" Thru outputs for unprocessed signal routing
• Ground Lift switch for hum loop elimination
• Polarity Flip (Phase) switch
• Captures full stereo image without signal degradation
• Connects audio interfaces and backing tracks to PA
• Handles high-output stereo signals with headroom
• Active, transformerless balancing circuit
• 2 channels with 2 x 1/4" TS unbalanced inputs
• 2 x XLR3M balanced outputs
• Two 1/4" TS Thru/Link outputs
• Compact chassis design
• Reduces pedalboard space and cable clutter for dual instrument setups
