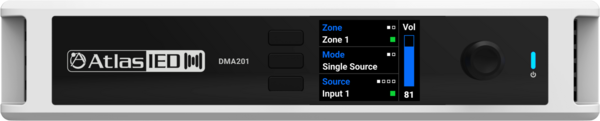

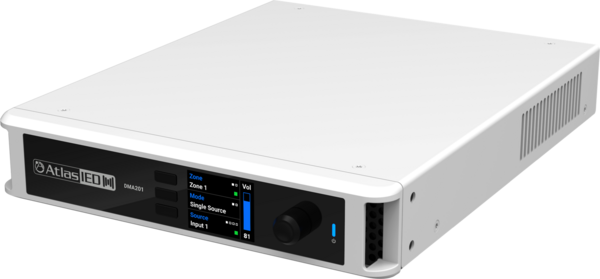

DMA201 | 200W Digital Mixer Amplifier with DSP, Expandable with LMA

DMA201
200W Digital Mixer Amplifier with DSP, Expandable with LMA

The AtlasIED DMA201 is designed for integrators who need additional output power and system flexibility while maintaining a familiar mixer amplifier workflow. Suitable for medium-sized commercial and institutional applications, the DMA201 operates immediately as a factory-configured mixer amplifier, eliminating the need for software during initial setup. This approach supports fast installs while still allowing deeper customization when required.

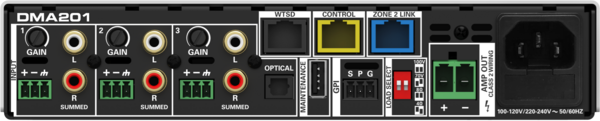

With 200 watts of available power and support for 2 O, 4 O, 8 O, and constant-voltage systems, the DMA201 provides ample headroom for distributed audio and sound reinforcement applications. Expanded input options, including balanced mic/line, optical audio, and WTSD Bus connectivity, allow integrators to place source inputs and accessories remotely using standard Category 5/6 cabling. Linking to an AtlasIED LMA Series amplifier via the proprietary Link Bus enables scalable two-zone systems with centralized control.

Designed for efficiency and long-term reliability, the DMA201 features a global auto-sensing power supply, Energy Star–compliant standby operation, and intelligent cooling that remains silent during typical operation. Integrated speaker line diagnostics, remote wall control support, and a compact half-rack form factor make the DMA201 a practical solution for projects requiring flexibility without added complexity.
