DMX512 | DMX FX512;19" RACKMOUNT 512-CH DMX CONTROLLER FOR MOVING HEADS & LED PARS, 16 EFFECTS GENERATORS

DMX512
DMX FX512;19" RACKMOUNT 512-CH DMX CONTROLLER FOR MOVING HEADS & LED PARS, 16 EFFECTS GENERATORS

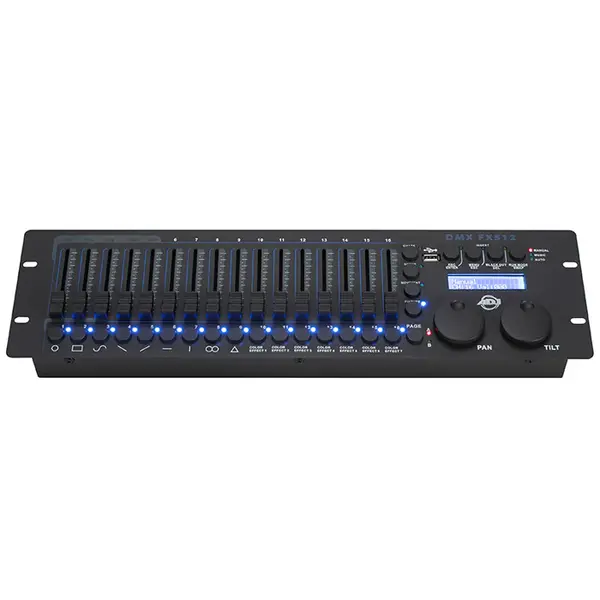

The ADJ Lighting DMX FX512 is a 3-space, 19-inch rack mount controller for both moving heads and LED pars with 16 effects generators and 512 channels. Its compatible with DMX and RDM protocols.

Features:

• 19-inch rack-mount DMX Controller
• DMX 512 RDM protocol
• 512 DMX channels
• Control up to 32 intelligent fixtures, up to 18 channels each
• 32 chases, each up to 100 steps, can run 5 chases simultaneously
• 32 programmable scenes
• Soft-patchable faders control wheels
• 16 built-in effects generator. 9 for moving light and 7 for RGB LED fixtures
• USB for data backup and firmware update

• DMX512 and RDM
• RDM to set the DMX addresses and DMX channel mode of the fixtures from controller
• 16 channel control faders
• Dedicated Pan/Tilt wheels (User Assignable)
• 16 Effects / Fixture select buttons
• Sound sensitivity digitally adjustable (0%-100%), built-in Mic.
• With Wired Digital Communication Network

• 5pin XLR DMX Output
• Power Supply Input
• USB A Port
